Synchro-feed III

New evolutionary welding mode delivering ultra-low spatter, high quality weld results Simple setup with reduced maintenance requirements

Synchro-feed III

Arc welding is a widely used welding process that provides high-strength welds, making it ideal for heavy-duty industrial applications such as construction, automotive manufacturing, and machinery production. With advanced arc welding technologies, manufacturers can achieve precision, efficiency, and durability in their metal fabrication processes.
See how our cutting-edge arc welding solutions enhance productivity and ensure high-quality welds in demanding industrial applications.

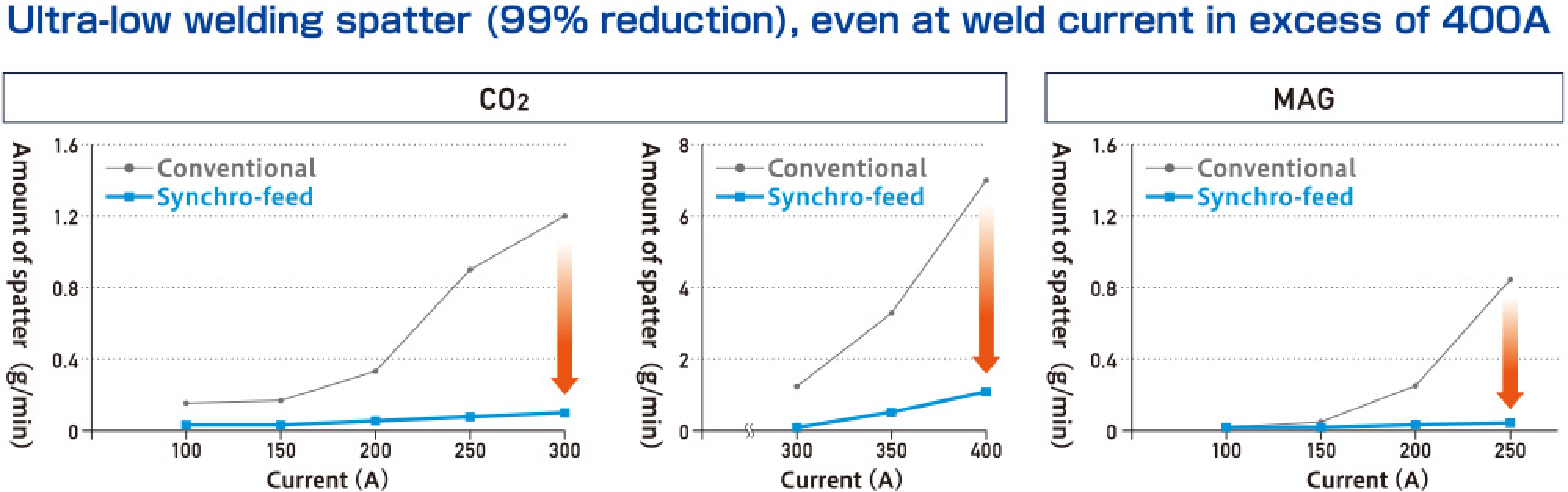

Synchro-feed virtually eliminates welding spatter!
Sync Feed Diagram

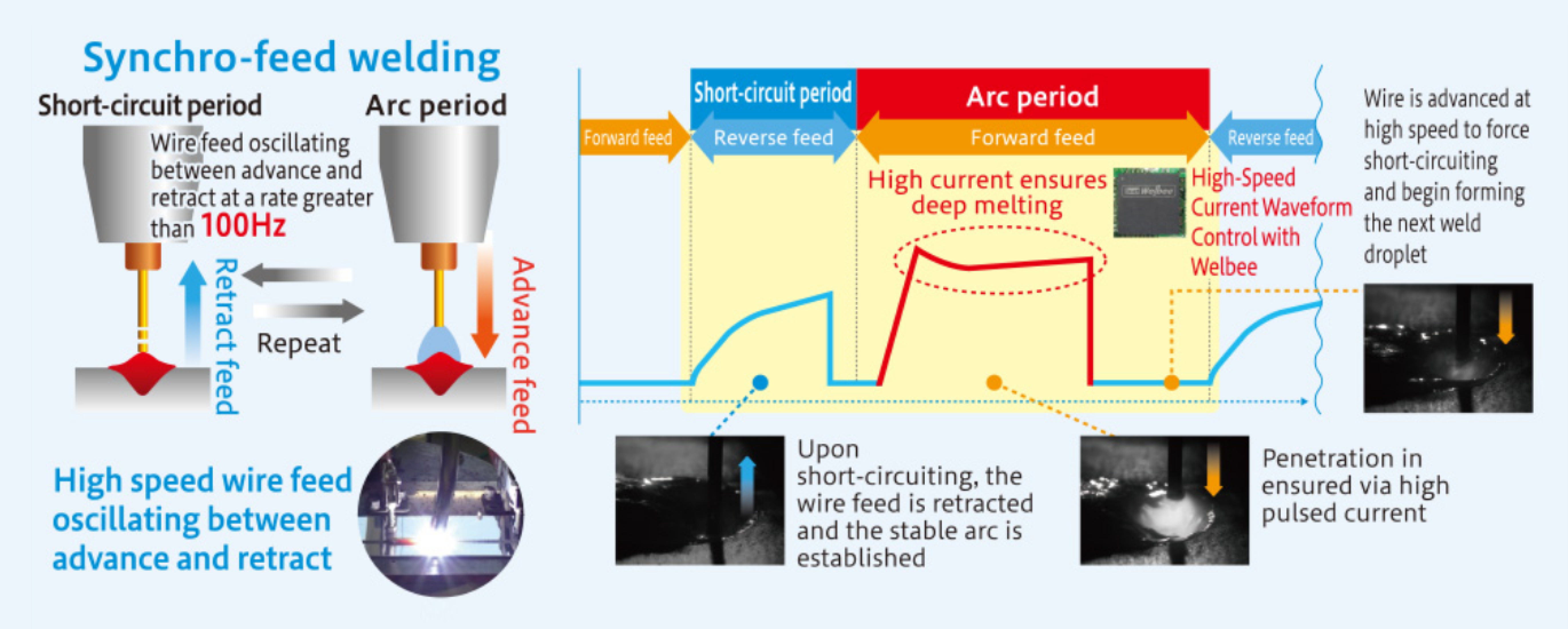

Synchro-feed welding process
Sync Feed Diagram

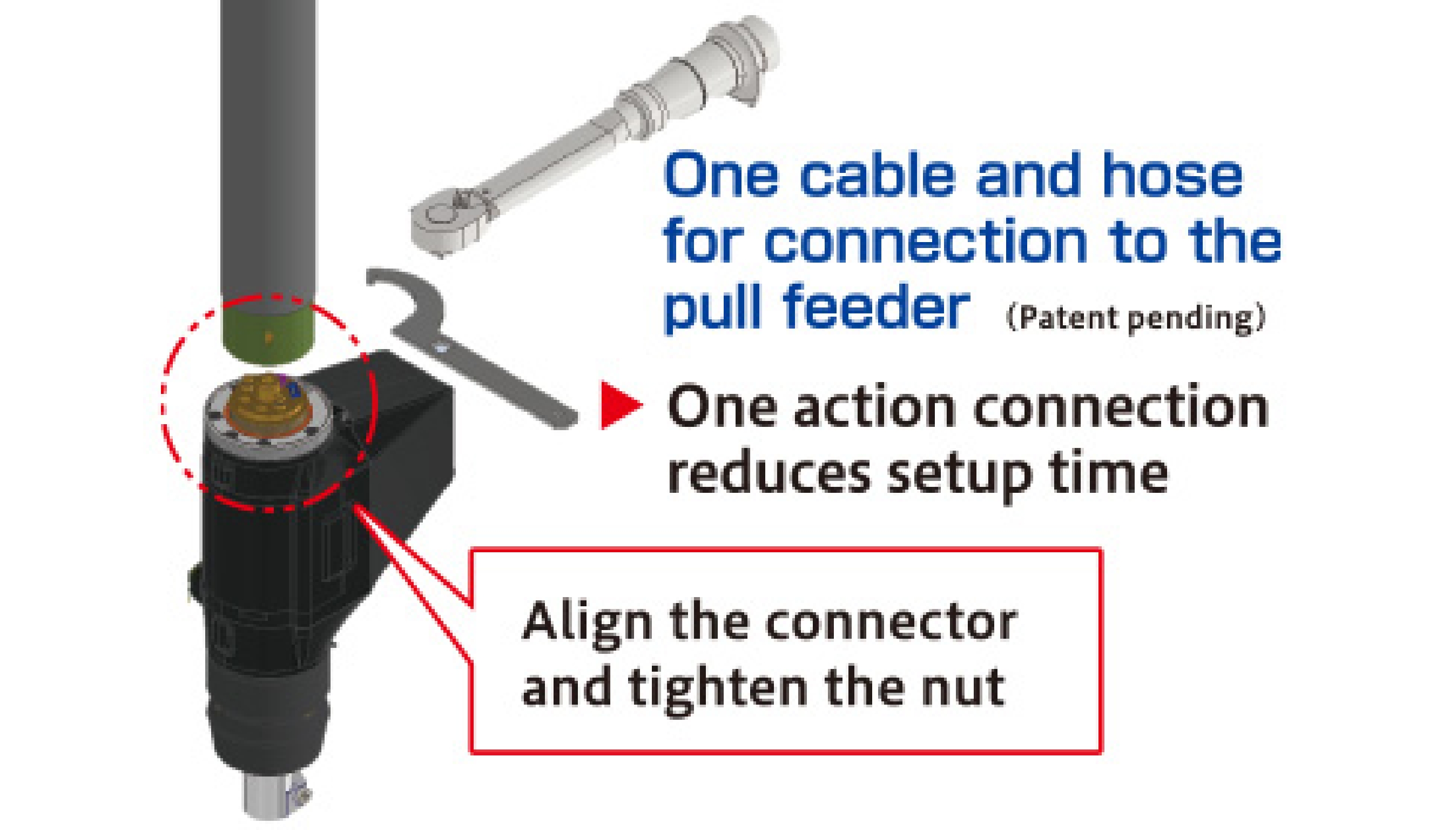

Simple connection and configuration
Simple Connection

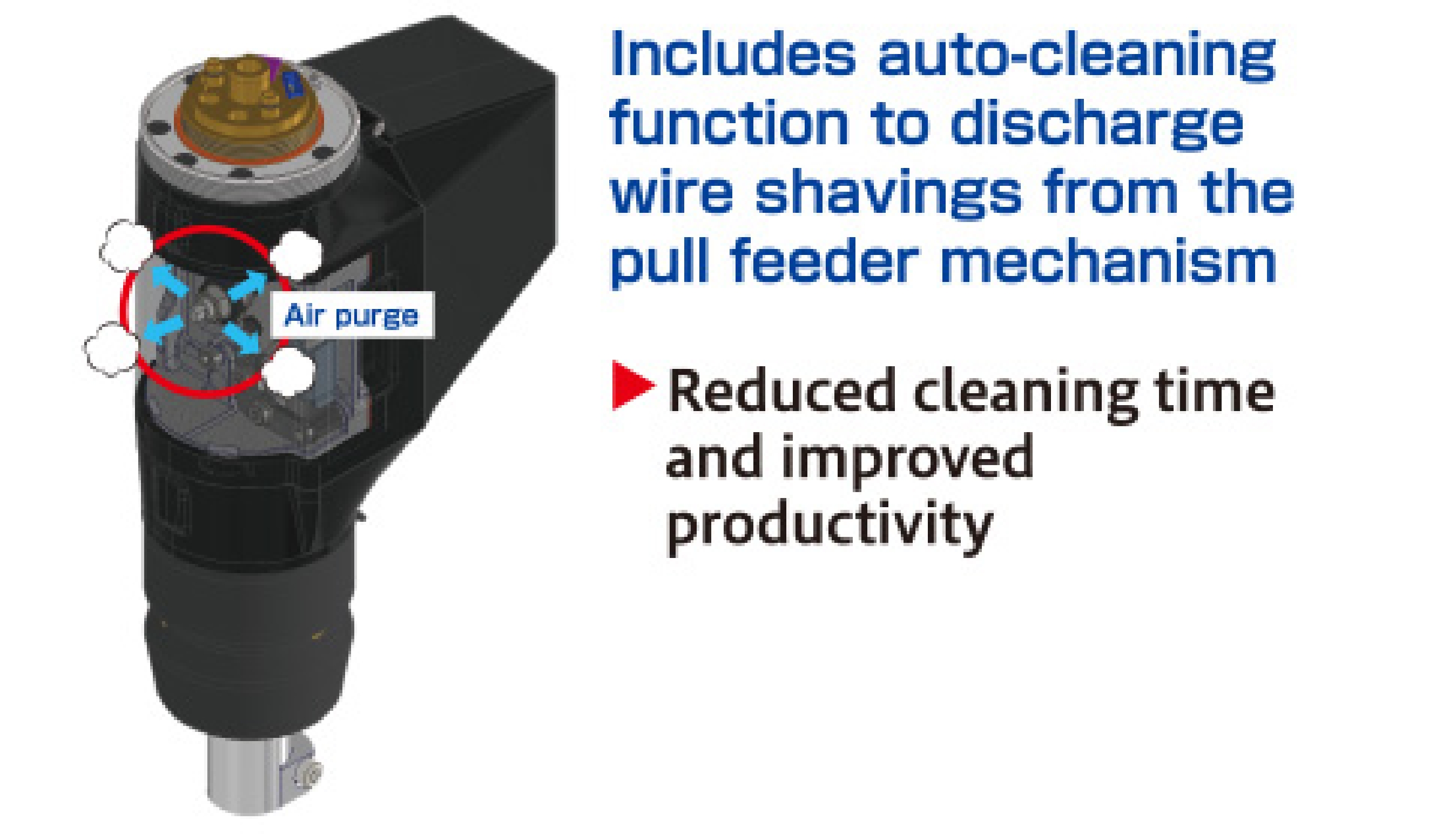

Reduced maintenance
Reduced Maintenance

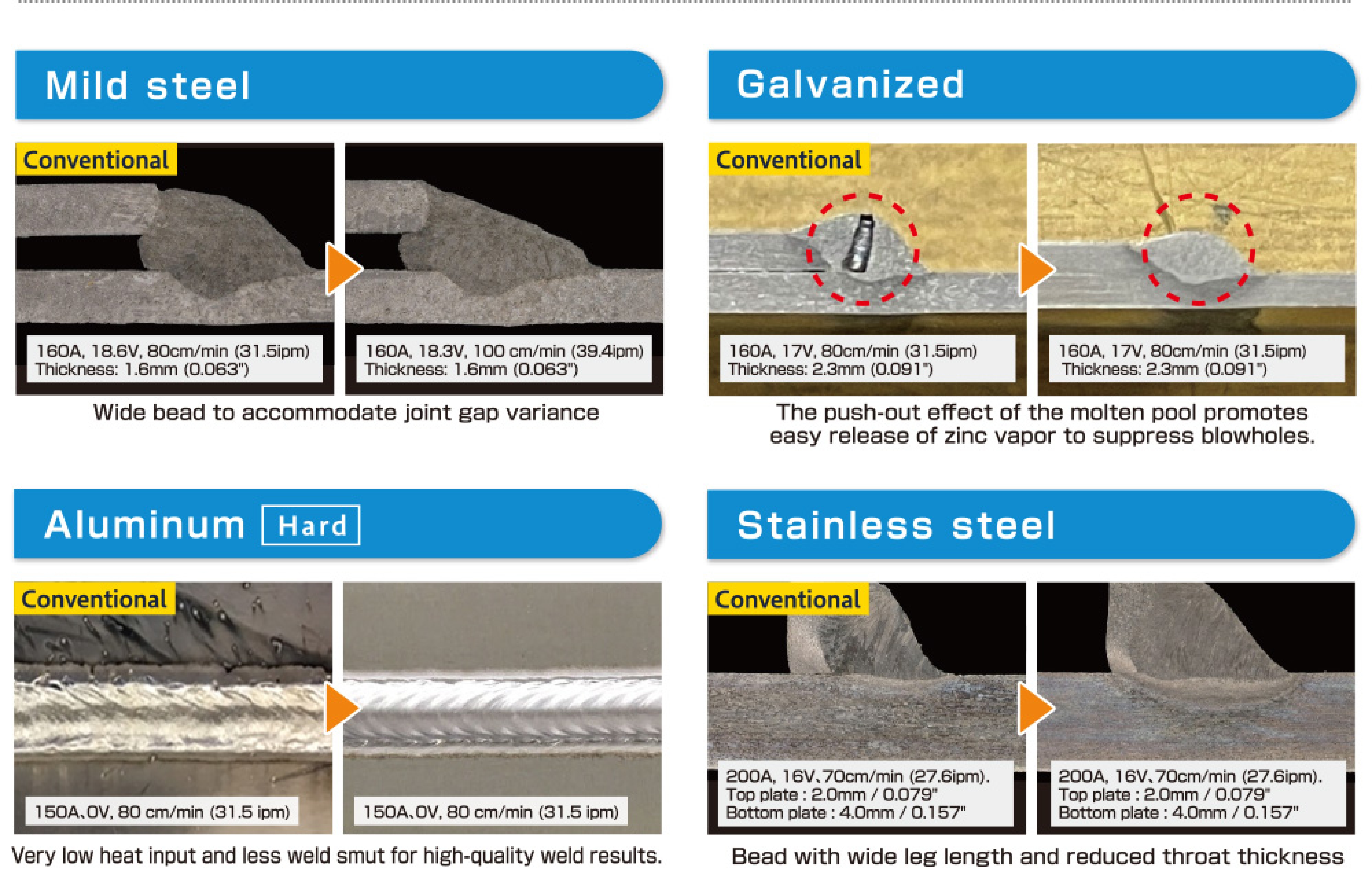

Compatible with various materials such as mild steel, stainless steel, aluminum, New mode for even higher quality welding

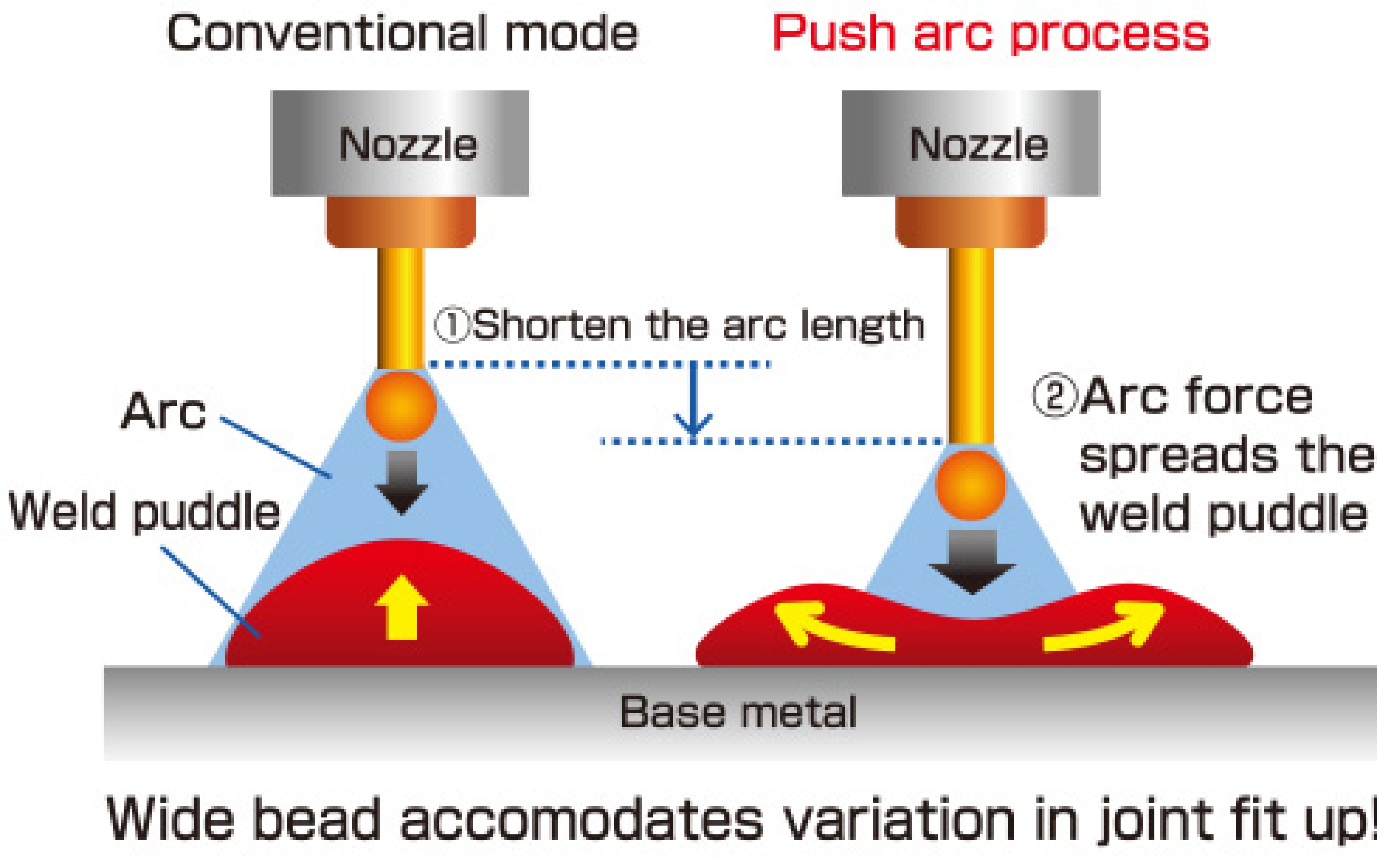

Push arc process
Simple Connection

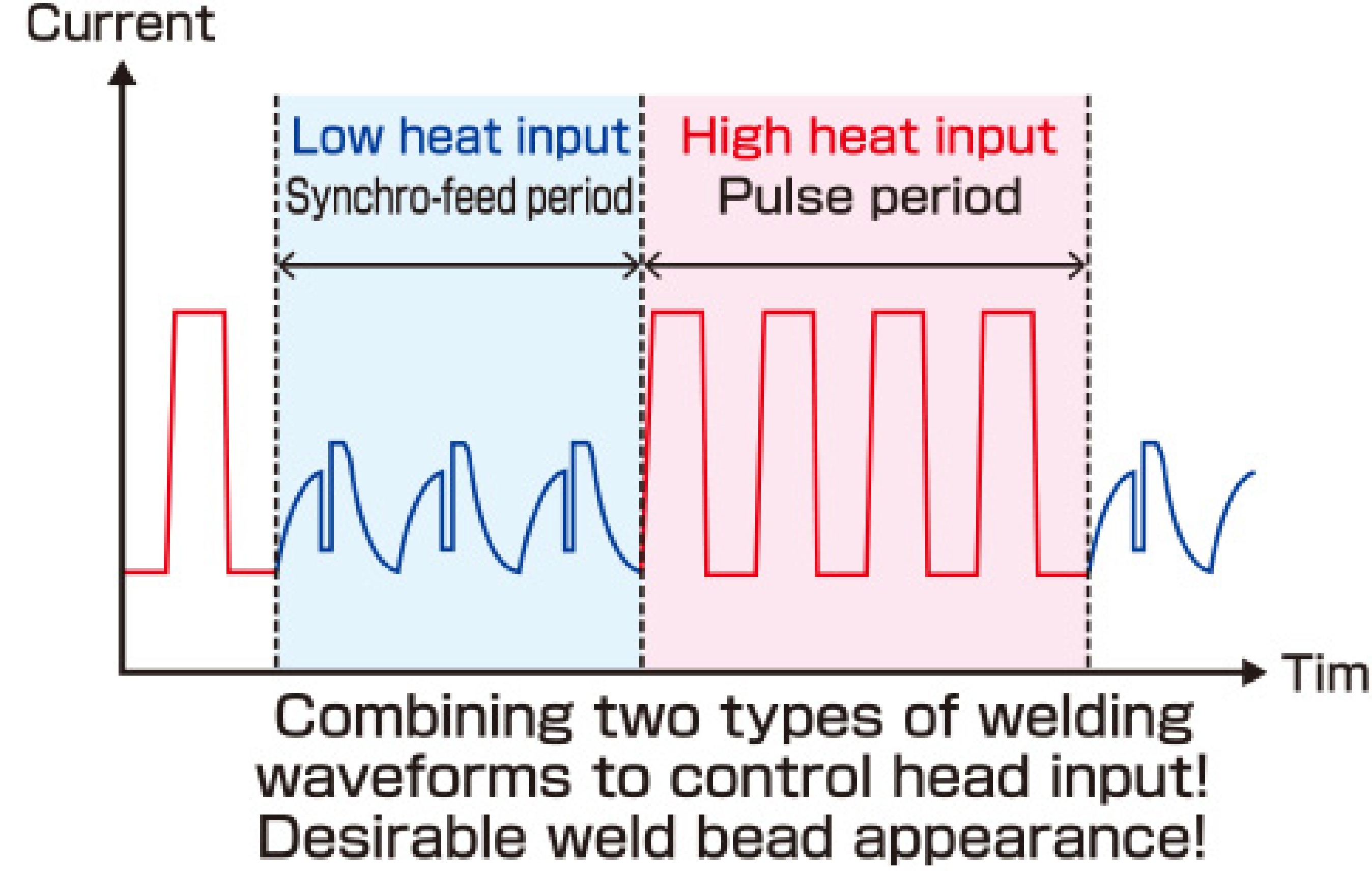

Synchro-feed pulse
Reduced Maintenance
Reduced Maintenance

APPLICATIONS

Automobiles

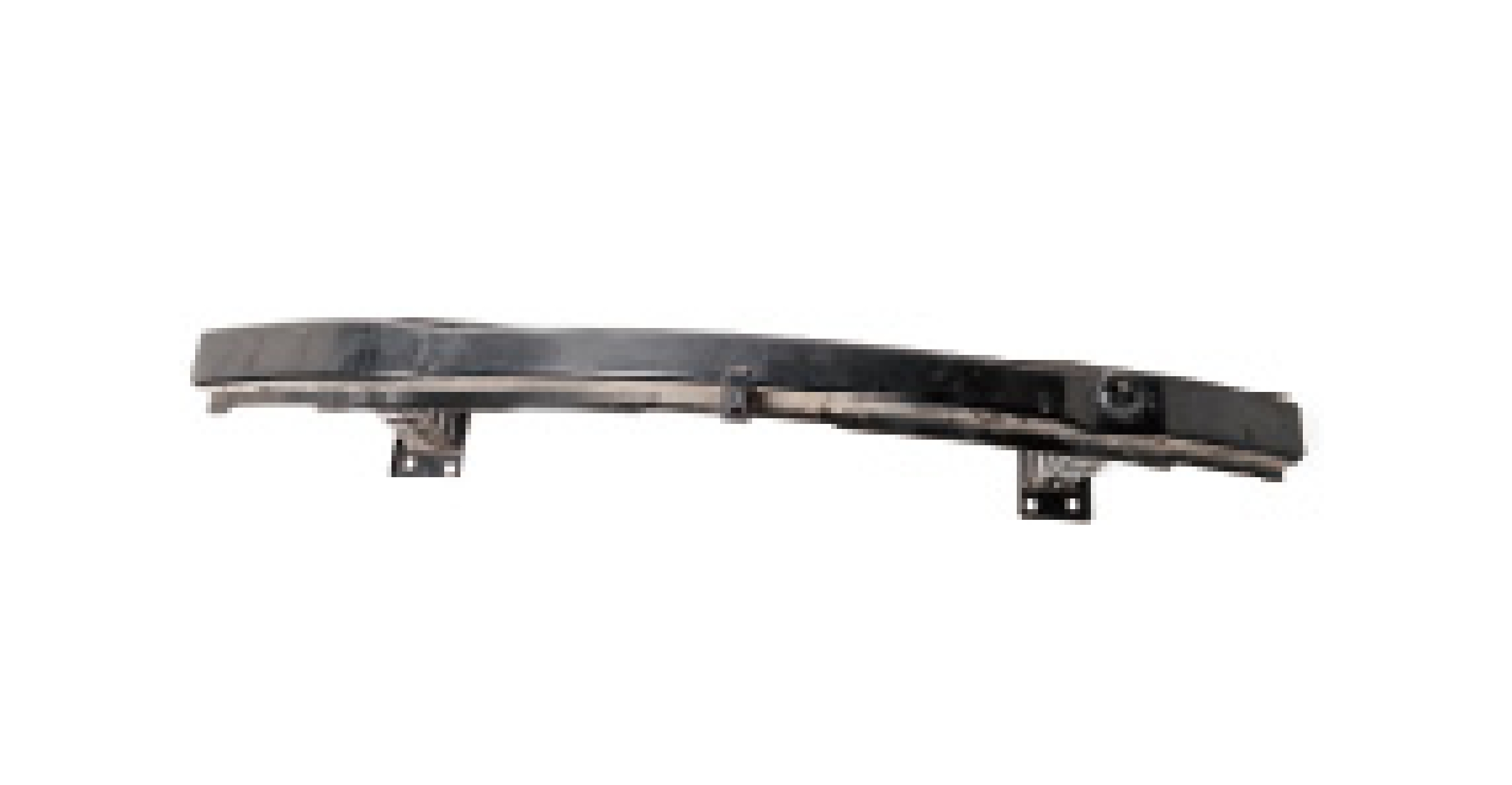

Bumper crash box (Aluminum)
Bumper crash box

Problem

Wrong thickness, melt-off

Solution

Synchro-feed pulse Adjusting the ratio between Synchro-feed and pulse welding for fine control of heat input

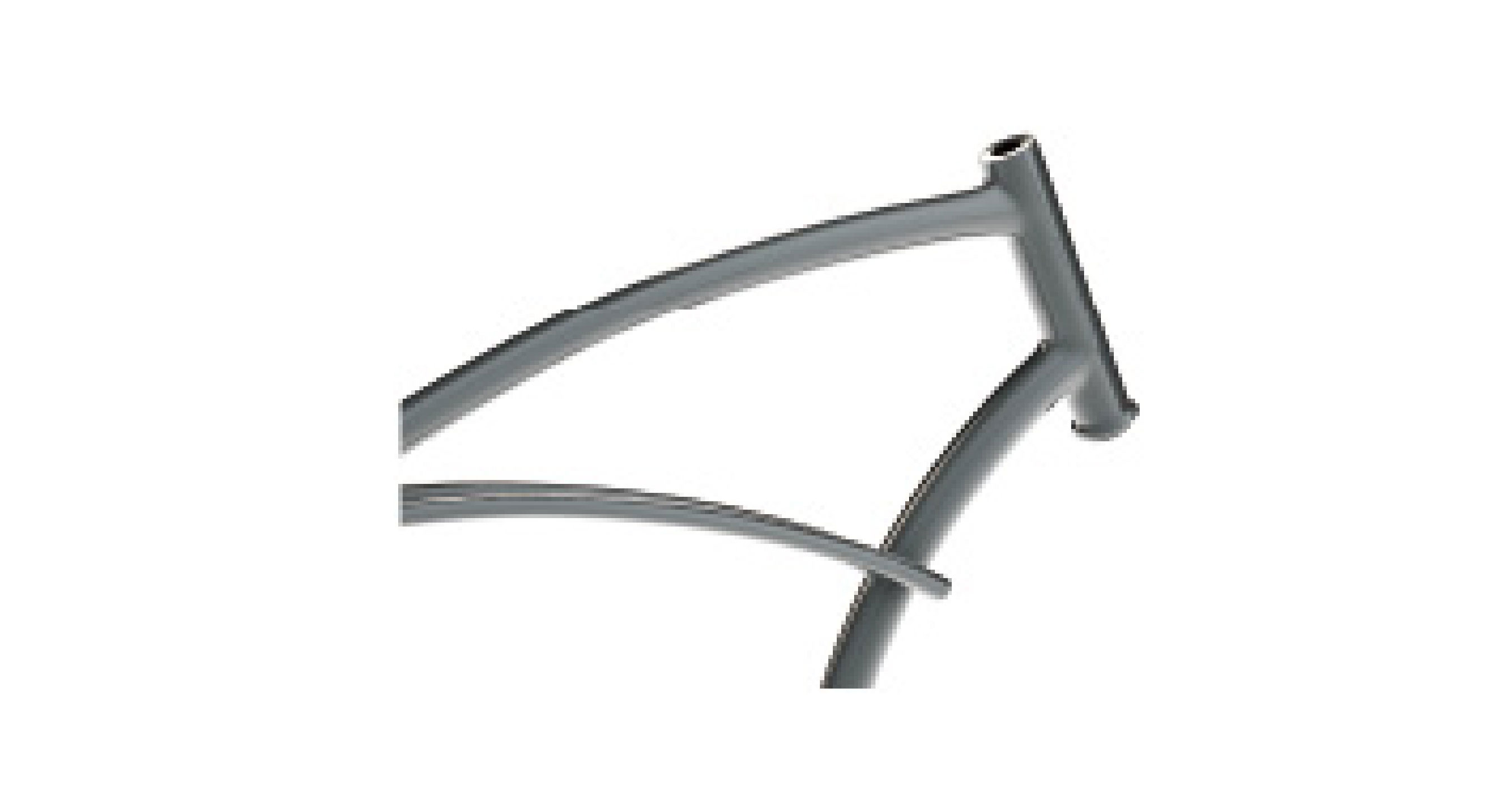

Pipe frame (Aluminum)
Pipe frame

Problem

Bead appearance

Solution

Stitch pulse welding TIG-like bead formation TIG-like, stacked bead appearance by stitch pulse welding mode

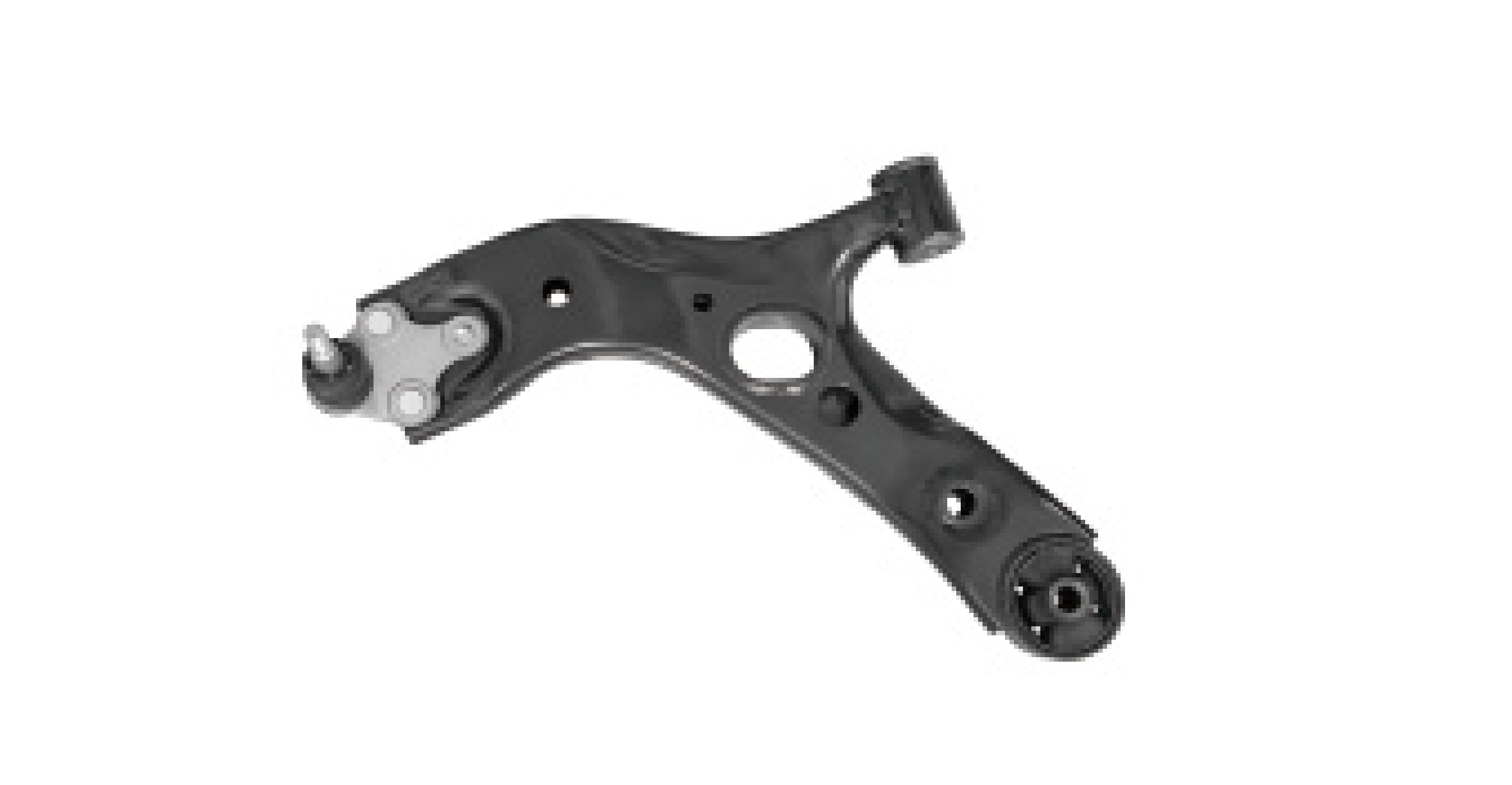

Suspension Lower Arm (galvanized steel sheets)
Suspension

Problem

Joint gap, spatter, blowhole, multiple welds

Solution

Push arc (wide bead) Enables wide bead, low spatter, and zinc vapor discharge

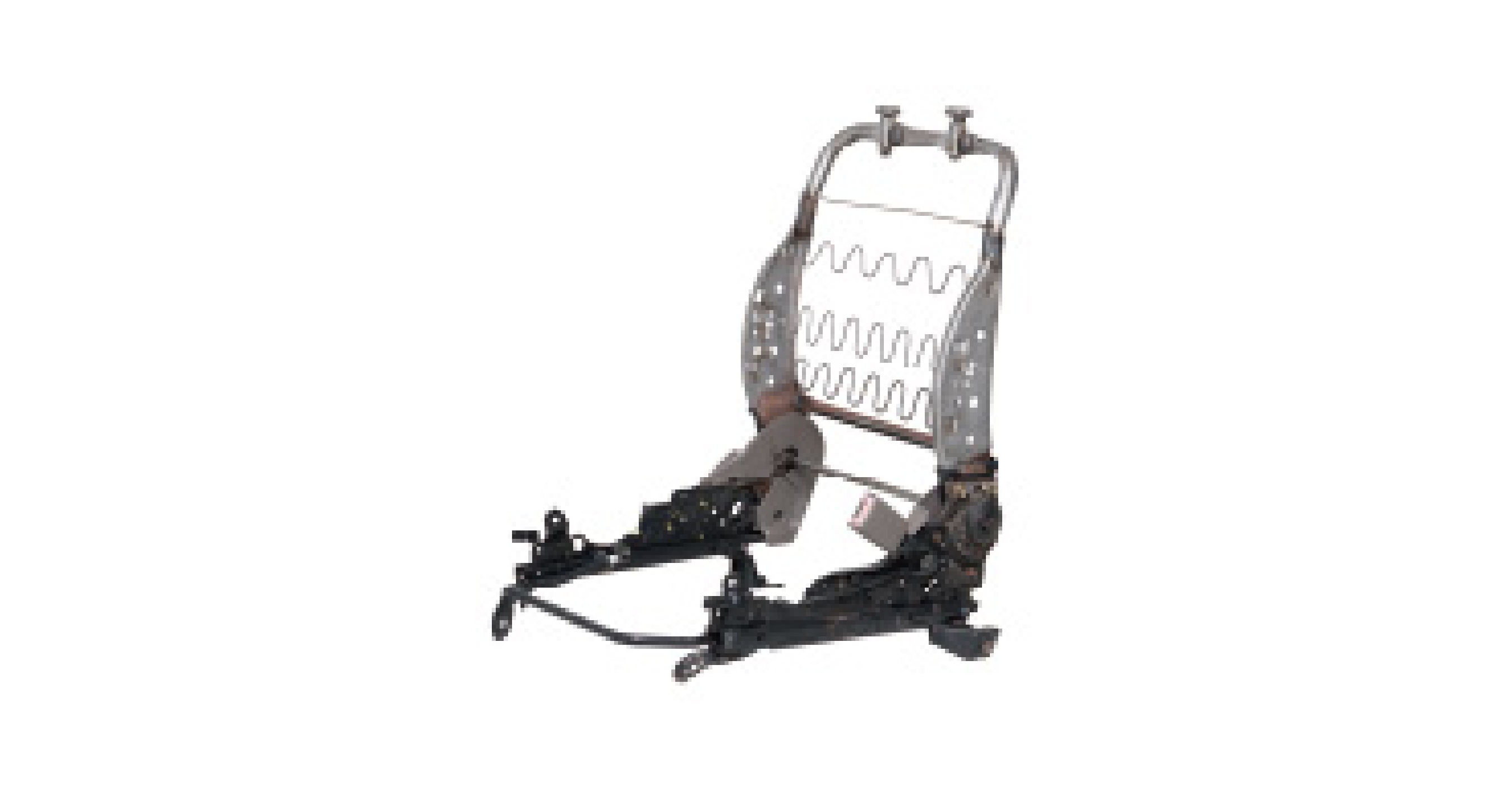

Seat frame (high-tensile steel)
Seat frame

Problem

Joint gap variance and targeting misalignment

Solution

Push arc (wide bead) Eliminates burn-through on ultra-thin material

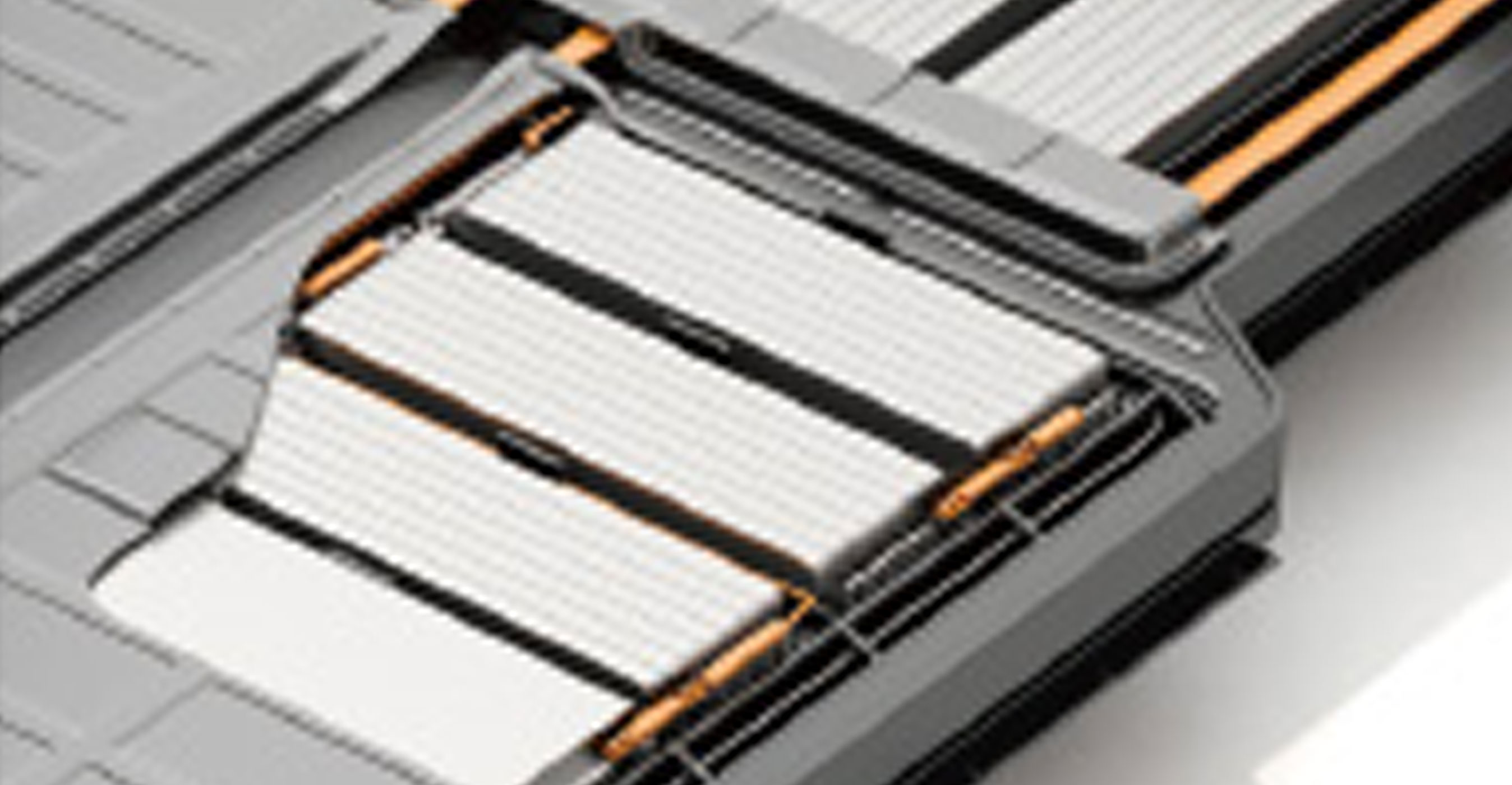

Battery Case (Aluminum)
Battery Case

Problem

Gap margin, thermal distortion, melt down

Solution

Push arc (wide bead) Wide bead with Push arc to tolerate joint gap variance

Automobiles

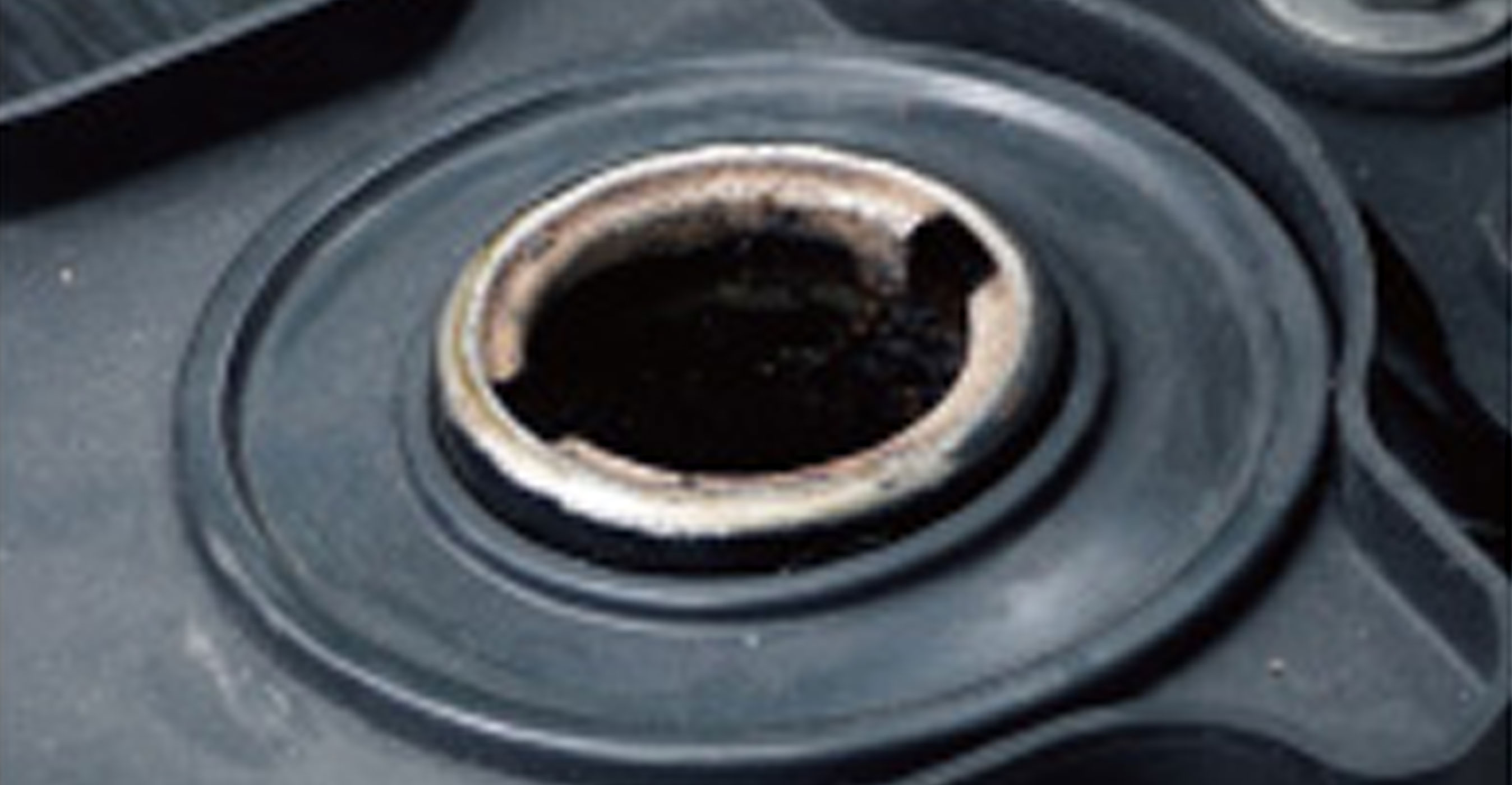

Tank (Iron)
Tank (Iron)

Problem

Misalignment tolerance

Solution

Synchro-feed pulse Ultra-low spatter achieved by Synchro-feed welding. Push arc’s wide bead better accomodates joint fit up variation

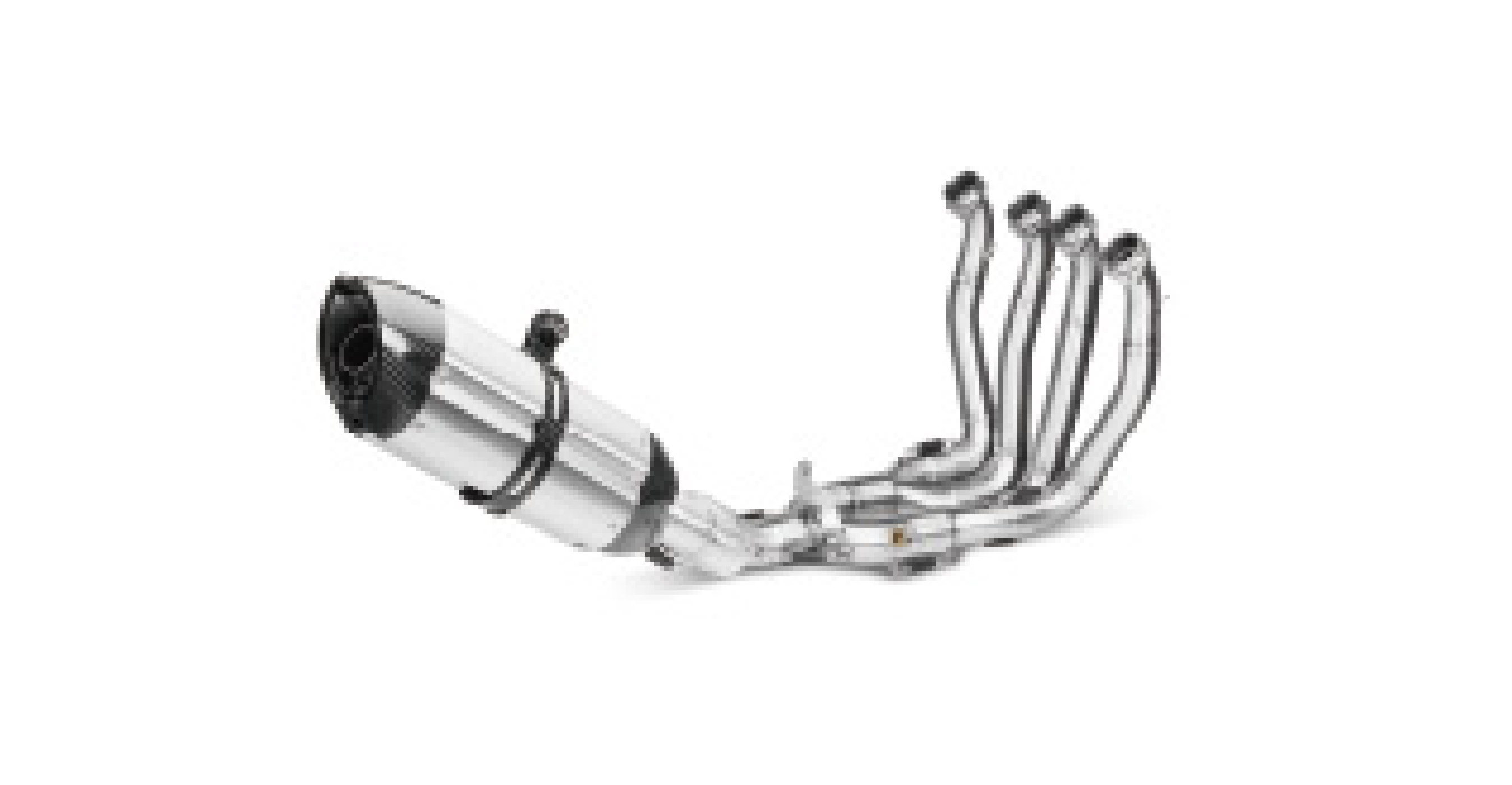

Muffler exhaust manifold (Stainless Steel)
muffler

Problem

Gap tolerance, wrong plate thickness

Solution

Push arc (wide bead) Push arc’s wide bead better accomodates joint fit up variation. Also improves high-speed welding performance.

Construction Machinery

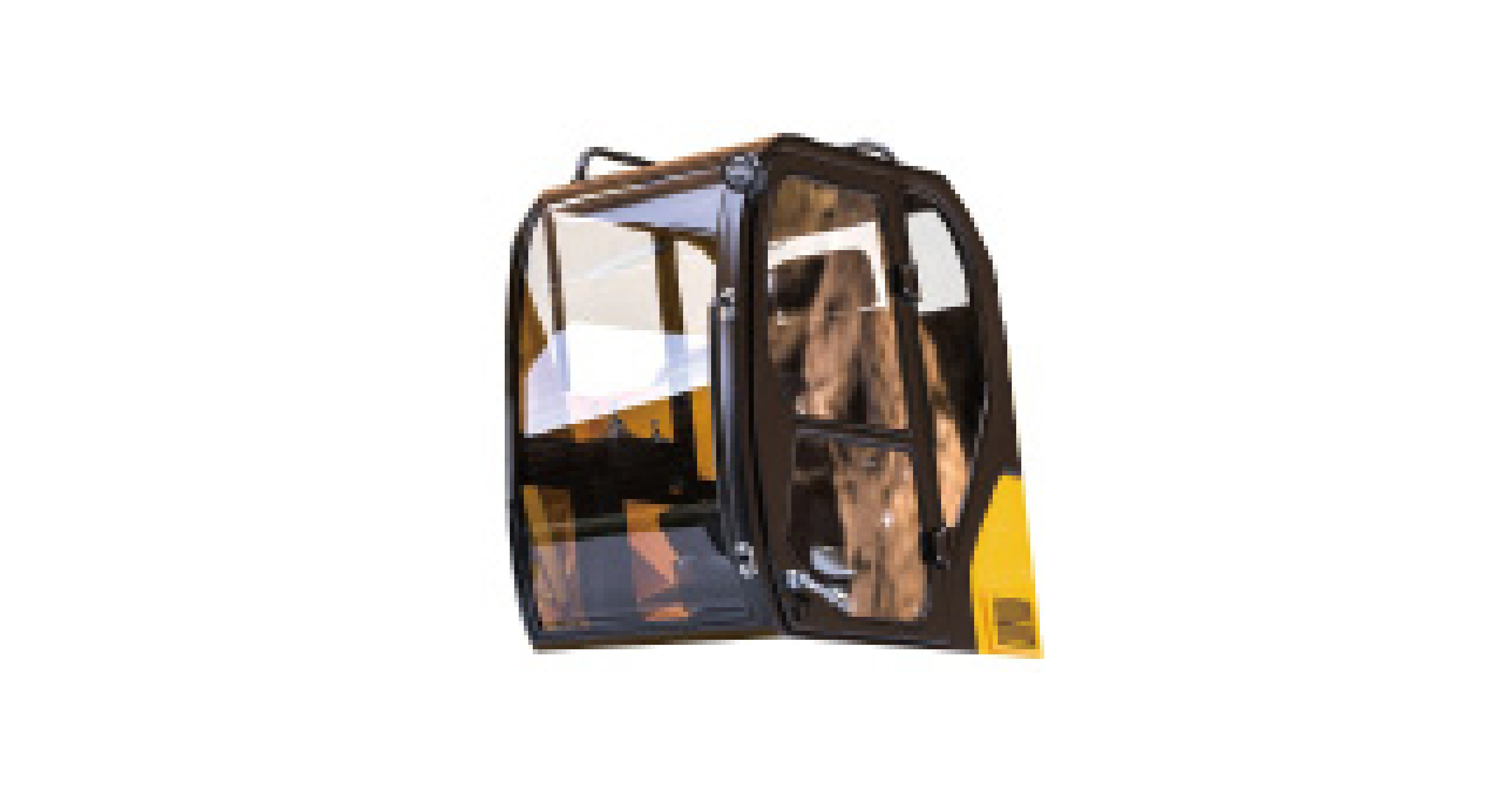

Cabin (Iron)
Tank (Iron)

Problem

Prevention of spatter adhesion and insufficient penetration in medium-thick plate welding

Solution

Weld with 450Ae High current, ultra-low spatter welding delivering deep penetraction with reduced weld spatter.

Other

Grating, building scaffolding, ladder, etc.
Contributes to improved welding quality by reducing spatter in many applications.


Why Choose Synchro Feed III Welding System
