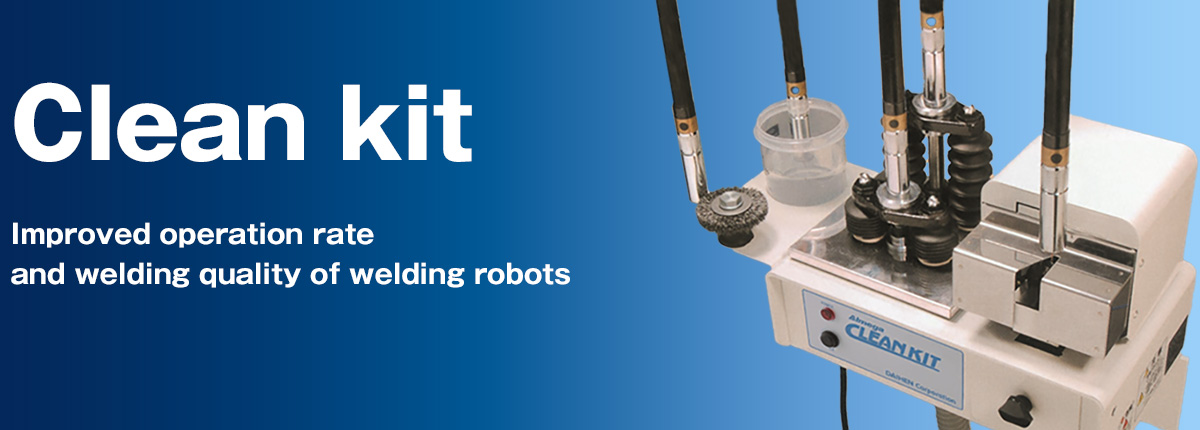

CLEAN KIT

CLEAN KIT

Improved operation rate and welding quality of welding robots



Main features

Automatically eliminates spatter in the torch nozzle (L-10748, K-2725)
Simultaneous cleaning and application of spatter adhesion prevention agent (L-10748, K-2725)
Wire-cutting function (K-2726) plus brushing (L-10748, K-2725)

Specifications

Shape L-10748 K-2725 K-2726
Inner diameter of nozzle Specify Ø13, Ø16 and Ø19.
Power supply AC100V　50/60Hz
Power consumption (W) 57 50
Air source (MPa) 0.49 Not required Not required
Dimensions ( Length × Width × Height) (mm) 438×195×233 498×188×227 132×190×143
Mass (kg) 11 9.7 4.5
Applicable wire diameter (mm) Ø1.6 or less
Accessories Guide fixing bracket Dedicated mounting bracket set Dedicated mounting bracket set
Other Please purchase anti-spatter adherence liquid separately.Recommended product: 2670-026 (DAIHEN)
Function Dual nozzle cleaning ○（Dual） ○（Single） -
Wire cut ○ ○ ○
Brushing ○ ○ -

* L-10748, K-2725 does not support True-Constant-Contact torches (TCC torches).

Application Scenarios

Recommended Robots

Optimize Your Manufacturing Process with Our Top Robot Solutions

At OTC, we offer a range of robotic solutions designed specifically for the automotive industry. Our recommended robots enhance productivity, precision, and efficiency in various manufacturing processes. Explore our top picks below:

COMPACT SERVO TORCH

COMPACT SERVO TORCH

The FD-A20 system ensures that wire deviation is kept to a minimum, significantly outperforming standard equipment. By maintaining a tighter tolerance, the system guarantees consistent contact with the joint, even in high-speed or complex application

Robots ROBOT SENSOR & ADDITIONAL
ARC SENSOR FD-AR

ARC SENSOR FD-AR

The FD-AR Arc Sensor provides a smart solution for tracking weld seams in real-time. By utilizing the weaving motion of the robot, it automatically adjusts the torch path to compensate for unpredictable variations during the welding process.

Robots ROBOT SENSOR & ADDITIONAL
LASER TRACKING SENSOR FD-QT

LASER TRACKING SENSOR FD-QT

Maximize precision and productivity with DAIHEN’s smart laser sensing. It automatically adjusts to gap variations in real-time, delivering flawless weld quality through a simple, PC-free handheld interface.

Robots ROBOT SENSOR & ADDITIONAL
