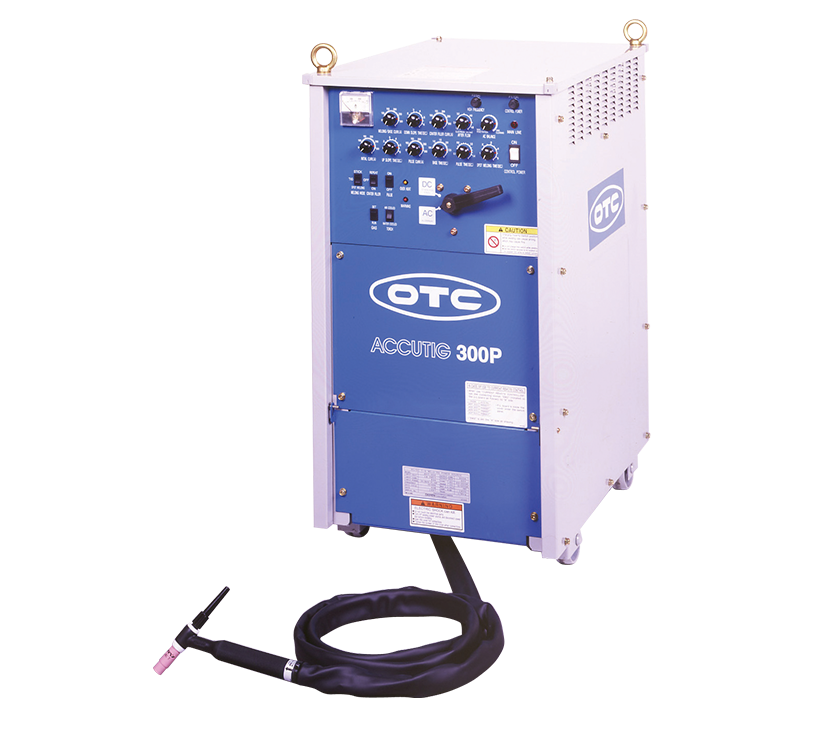

ACCUTIG 300P / 500P

Achieve ultimate weld quality on aluminum with the ACCUTIG 300P/ 500P. Featuring advanced Thyristor Control, this AC/DC Pulsed TIG machine offers versatile current waveforms and precision pulse functions. Engineered for those who demand high-integrity welds and flawless aesthetics.
AEP-300

Main Features

  • Advanced Control: Features IC Thyristor and Dynamic Reactor for highly stable rectangular wave AC current.
  • 7 Welding Modes: Supports AC/DC Pulsed TIG, Standard TIG, and Stick welding.
  • Aluminum Specialty: Includes a single-knob adjustable cleaning width for superior aluminum bead quality.
  • Full Cycle Control: Equipped with pre-flow, up/down-slope, and 3-way crater filler functions.
  • Power Saving: Automatic input cutoff circuit to reduce energy consumption during idle time.
AEP300

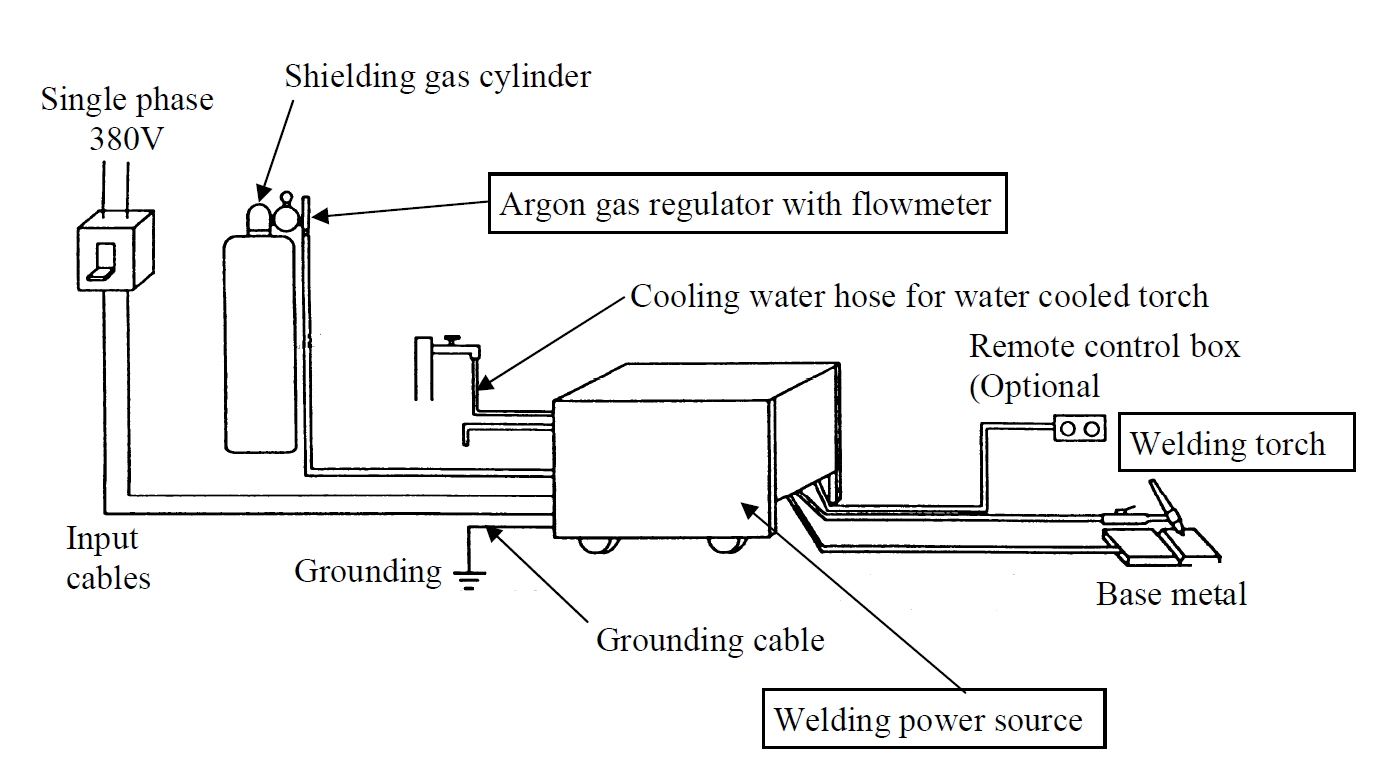

Standard composition
The setup for the ACCUTIG 300P / 500P is a comprehensive TIG welding configuration designed for industrial performance.
TIG

Technical specification

Welding power supply AEP-300 AEP-500
Rated input Single phase 380/400V Single phase 380/400V
Rated output 300A 500A
Output adjustment range AC～350A / DC～350A AC～500A / DC～500A
Rated utilization rate 100% 100%
Mass (dimension) 176 kg (460x663x859mm) 273 kg (508x724x895mm)
Welding Torch AW-18 AW-12
Cable Hose BAB-3501 BMRH-5001
Download Banner

Application Scenarios

Recommended Robots

Optimize Your Manufacturing Process with Our Top Robot Solutions

At OTC, we offer a range of robotic solutions designed specifically for the automotive industry. Our recommended robots enhance productivity, precision, and efficiency in various manufacturing processes. Explore our top picks below:

WELBEE A350P

WELBEE A350P

A high-performance digital inverter system delivering superior pulse TIG welding quality across all material thicknesses, from ultrathin to thick plates, with maximum efficiency.

Welding Machine TIG
