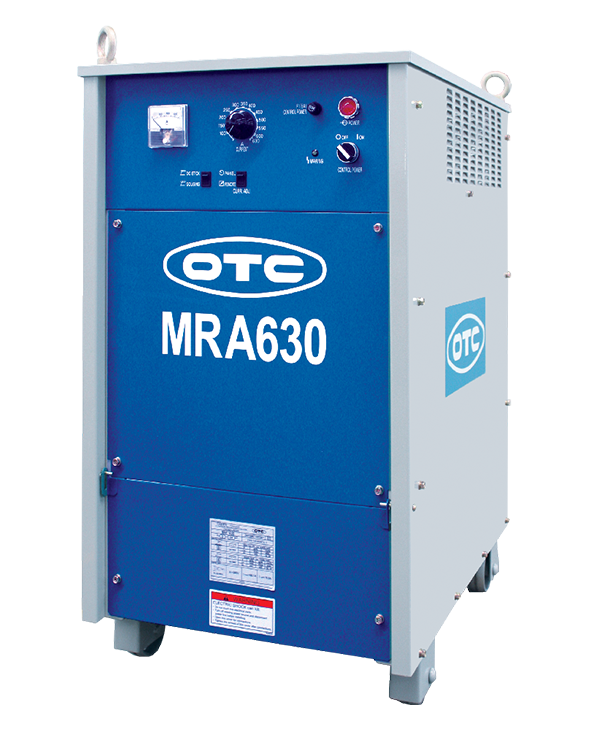

MRA630

The MRA630 delivers a stable arc and minimal spatter through advanced microcomputer control. It features optimized gouging settings and versatile compatibility with various metals, from high-strength steel to copper alloys. Designed for reliability, its built-in protection systems ensure safe operation and simplified maintenance.
MRA630

Main Features

  • Microprocessor Control: Ensures a stable arc with minimal spatter. It automatically delivers the most suitable current for high-efficiency welding performance.

  • Diversified Applications: Highly versatile and suitable for a wide range of materials, including low-carbon steel, heat-resistant steel, stainless steel, and copper alloys.

  • User-Friendly Design: Focused on safety with integrated multiple protection systems, making the machine easy to operate and maintain.

MRA630

Standard composition
This diagram illustrates the setup for a Plasma Cutting and Gouging System. It outlines the necessary components, gas requirements, and electrical safety standards.

AC

Technical specification

Welding power supply MRA-630
Input Voltage 3-phase, 380V ±10%, 50/60Hz
Rated Input Capacity 49.7 kVA (36.8 kW)
Output Current Range 60–630 A
Rated Duty Cycle 60%
Mass (dimension) 508×724×894 mm
Weight 232 kg
