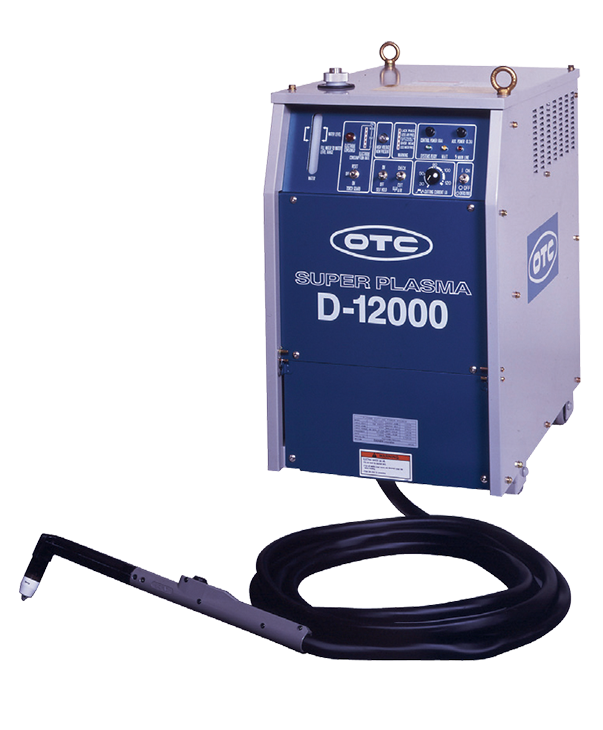

D-12000

The D-12000 is built for continuous, high-speed operation with a 100% duty cycle. It excels in both power and accuracy, cutting 16mm plates four times faster than traditional gas methods, while handling thicknesses up to 60mm. It’s a reliable solution for those seeking a high-quality finish without the high overhead.
D-12000

Main Features

  • High Power & 100% Duty Cycle: Engineered for high-speed precision cutting with the ability to operate continuously without downtime.
  • Maximum Cutting Capacity: Capable of handling materials up to 60mm (2.4in) thick with ease.
  • Superior Surface Finish: Produces a high-quality, smooth edge finish that rivals traditional gas cutting results.
  • Cost-Efficient Operation: Significantly lowers operating expenses by combining rapid cutting speeds with long-lasting consumable parts.

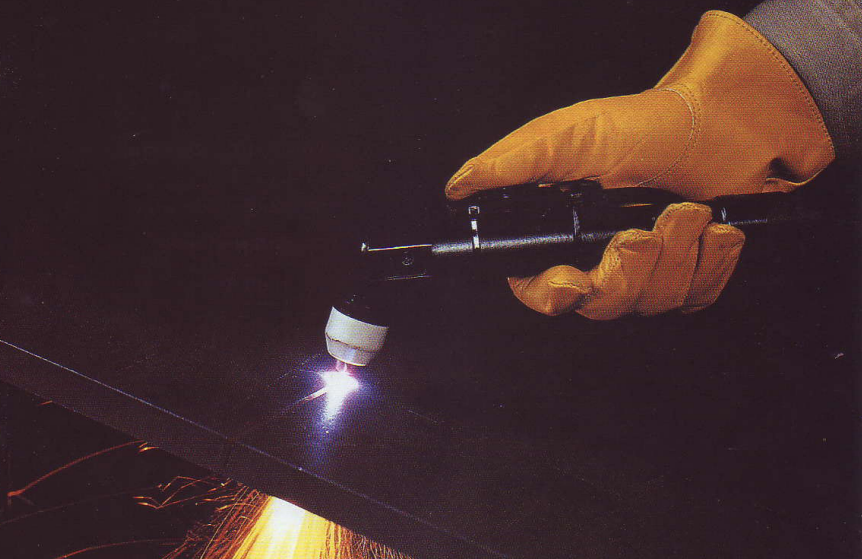

plasma cutting

Technical specification

Welding power supply D-12000
Cutting power source TRC-121
Input voltage (V) Indicate input voltage when ordering
Rated Frequency (Hz) 50/60
Phase 3 -phase
Rated inpit (KVA) 28.3 (27.5KW)
Rated output current (A) 120
Rated duty cycle (%) 100
Dimensions (W x D x H) mm 176 kg (450 x 780 x 775)
Weight (kg) 176
