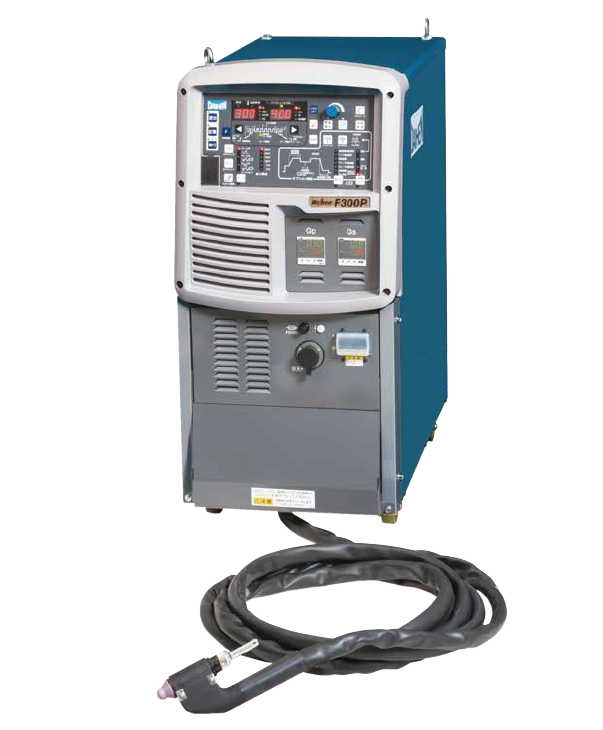

WELBEE F300P

This plasma welding system ensures high reproducibility by managing all parameters through a precise digital interface. It is engineered for versatility, supporting various techniques from micro-welding to keyhole applications. Safety and durability are integrated through coded torches that prevent operational errors, while built-in mass flow controllers maintain a consistently stable gas flow for optimal performance.

Welbee F300P

Main Features

  • Keyhole Welding: Enables high-speed processing while maintaining superior weld quality.
  • Advanced Pulse Function: Allows free adjustment of pulse frequency to effectively prevent material distortion and burn-through.
  • Torch Recognition: Automatically identifies the connected torch to safeguard the unit and consumables from overheating.
  • Dual Nozzle Options: Offers a Double Nozzle type for reduced electrode wear and long-term stability, and a Single Nozzle type for a compact design capable of handling high currents.


F300P

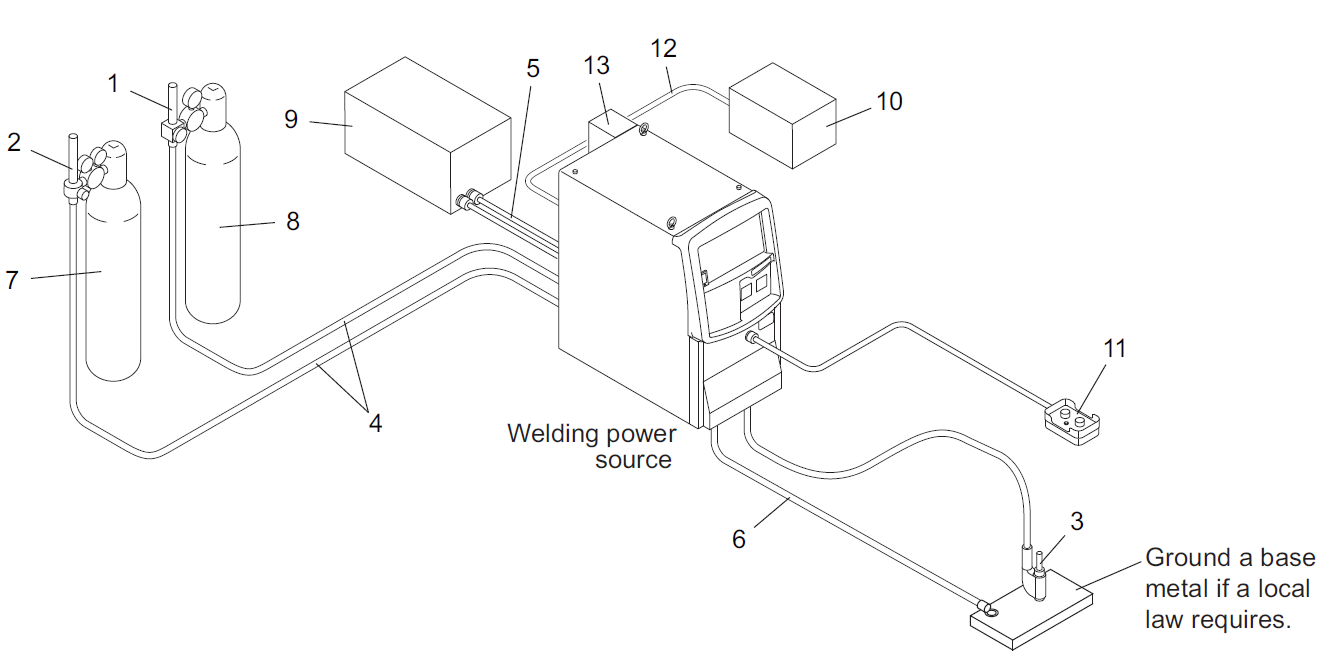

Standard composition
This section explains the standard composition of the welding power source.
For equipment used in combination with the welding power source connected to robot, refer to the instruction manual of the robot controller.
No. Name No. Name
1 Ar gas regulator 8 Plasma gas
2 Ar gas regulator 9 Chiller
3 Welding torch 10 Air compressor
4 Teflon gas hose (5m) 11 Analog remote control (optional)
5 Water hose (5m) 12 Air hose
6 Power cable for base metal side (5m) 13 Air unit
7 Shielding gas
Plasma welding

Technical specification

Welding power supply WB-F300P
Rated input voltage 400 V
Primary power max. 14.5 kVA, 13.1 kW
Rated output current range 0.5-300 A
Rated output voltage range 37 V
No-load voltage 154 V
External dimensions (WxDxH) 95 kg (395 mm x 710 mm x 835 mm)
