Slider
(1SB/1SR & 1SR-P Series)

High-Performance Solution for Robust Automation Engineered for high stability, this unit supports a 330 kg payload, ensuring effortless handling of heavy workpieces. The comprehensive protective sealing prevents ingress of welding spatter, metal dust, and oil mist—guaranteeing maximum operational uptime and significantly reducing long-term maintenance requirements in harsh industrial environments.
Positioner

High-Performance Industrial Sliders
1SB/1SR & 1SR-P Series

  • Heavy-Duty Capacity: The standard 1SB/1SR types support a maximum payload of 330 kg, ideal for transporting heavy industrial components.

    Advanced Protective Structure: All models feature a robust dust-proof design that prevents ingress of welding spatter, oil, and dust, ensuring durability in harsh environments.

  • Integrated Utility (1SR-P): The 1SR-P variant includes a connecting cart specifically designed for mounting pack wires alongside the robot attachment, optimizing workspace efficiency.

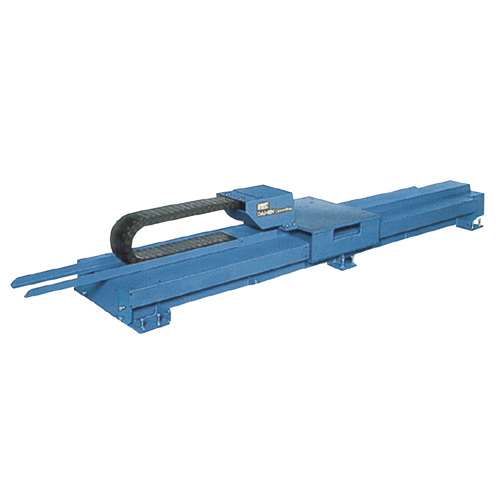

Slider 1SB type

    Light object transportable slider 1SB type

    Shape A2SB102-J A2SB202-J
    Moving stroke
    		 1000mm
    		 2000mm
    Maximum tool-up speed
    		 0.3m/s
    Max. payload
    		 330kg
    Repeatability
    		 ±0.1mm
    Overall length
    		 2510mm 3510mm
    Mass
    		 450kg
    550kg
    slider 1SR

    Light object transportable slider 1SR type

    Shape A2SR292-J A2SR392-J A2SR492-J
    		 A2SR592-J
    		 A2SR692-J
    Moving stroke
    2900mm
    3900mm
    4900mm
    5900mm
    6900mm
    Maximum tool-up speed
    0.295m/s
    Max. payload
    330kg
    Repeatability
    		 ±0.1mm
    Overall length
    4500mm
    4500mm
    6500mm
    7500mm
    8500mm
    Mass
    650kg
    750kg
    850kg
    950kg
    1050kg

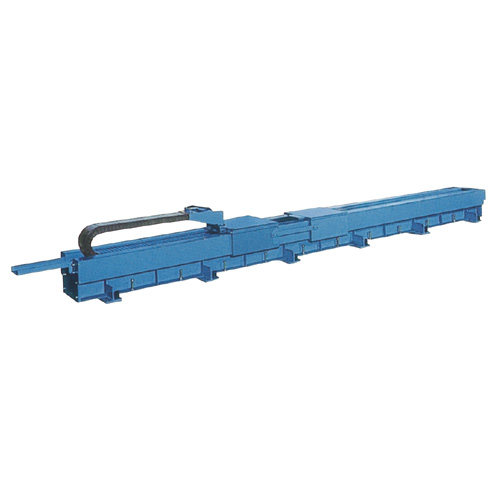

    Slider 1SR-P

    Slider 1SR-P with connecting bucket

    Shape
    A2SR19P2-J
    A2SR29P2-J
    A2SR39P2-J
    A2SR49P2-J
    		 A2SR59P2-J
    Moving stroke
    1900mm
    2900mm
    3900mm
    4900mm
    5900mm
    Maximum tool-up speed
    0.295m/s
    Max. payload
    660kg (However, every table 330kg)
    Repeatability
    		 ±0.1mm
    Overall length
    4500mm
    5500mm
    6500mm
    7500mm
    8500mm
    Mass
    800kg
    900kg
    1000kg
    1100kg
    1200kg
