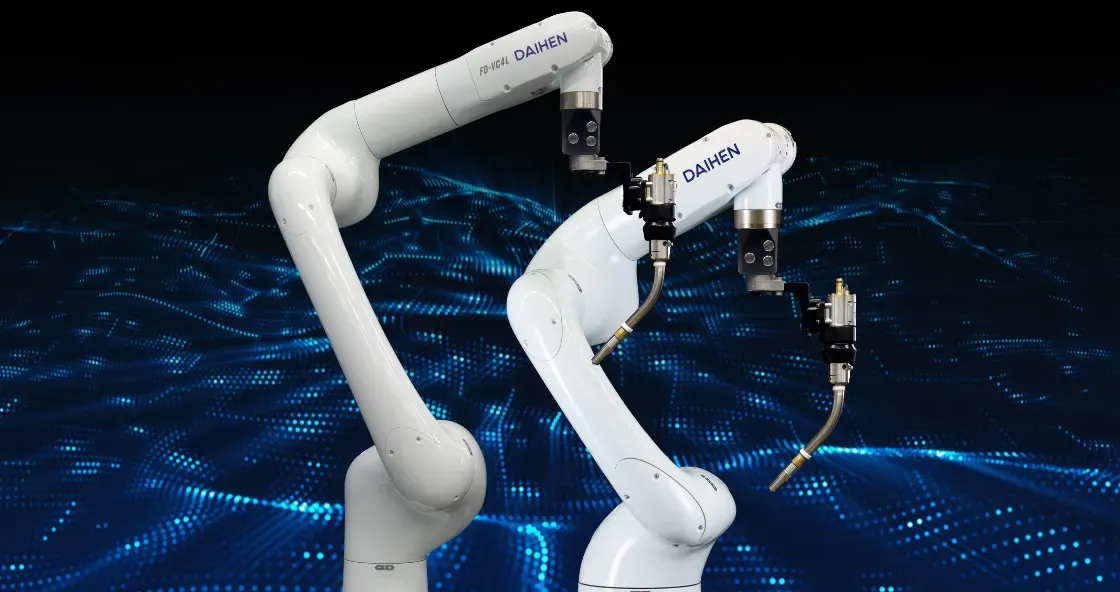

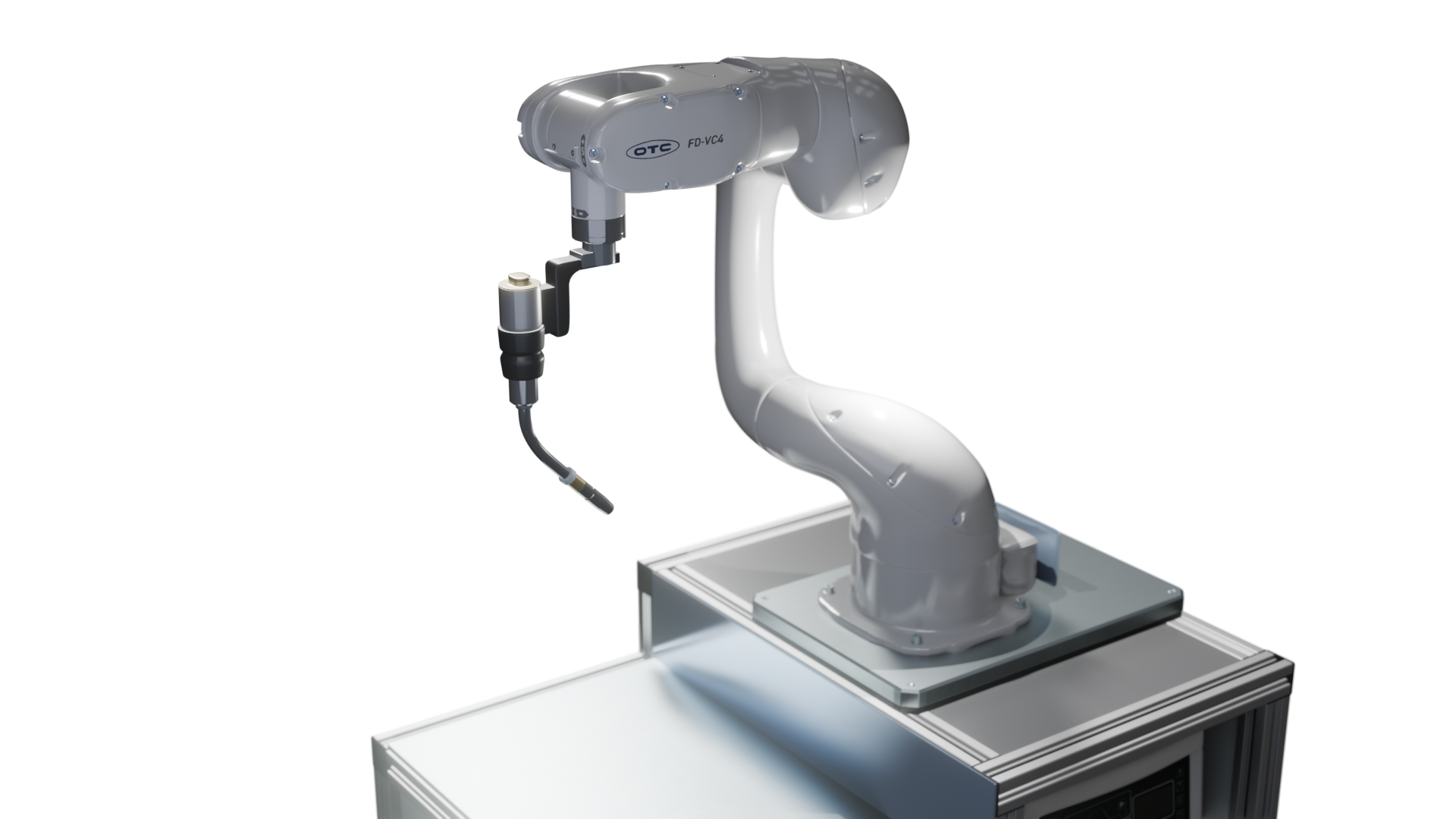

FD-VC4/FD-VC4L

FD-VC4/FD-VC4L is compatible with the complete OTC welding technology and sensor portfolio and is the first Cobot specifically developed for welding applications.

FD-VC4

This Cobot offers an easy entry into automation with no extensive training required, thanks to an intuitive teach-in method. Since pioneering the single-device teach pendant in 1983, OTC continues to innovate in 2023 with PhotoTeach—the first visual programming system for both robots and welding technology on a single device.

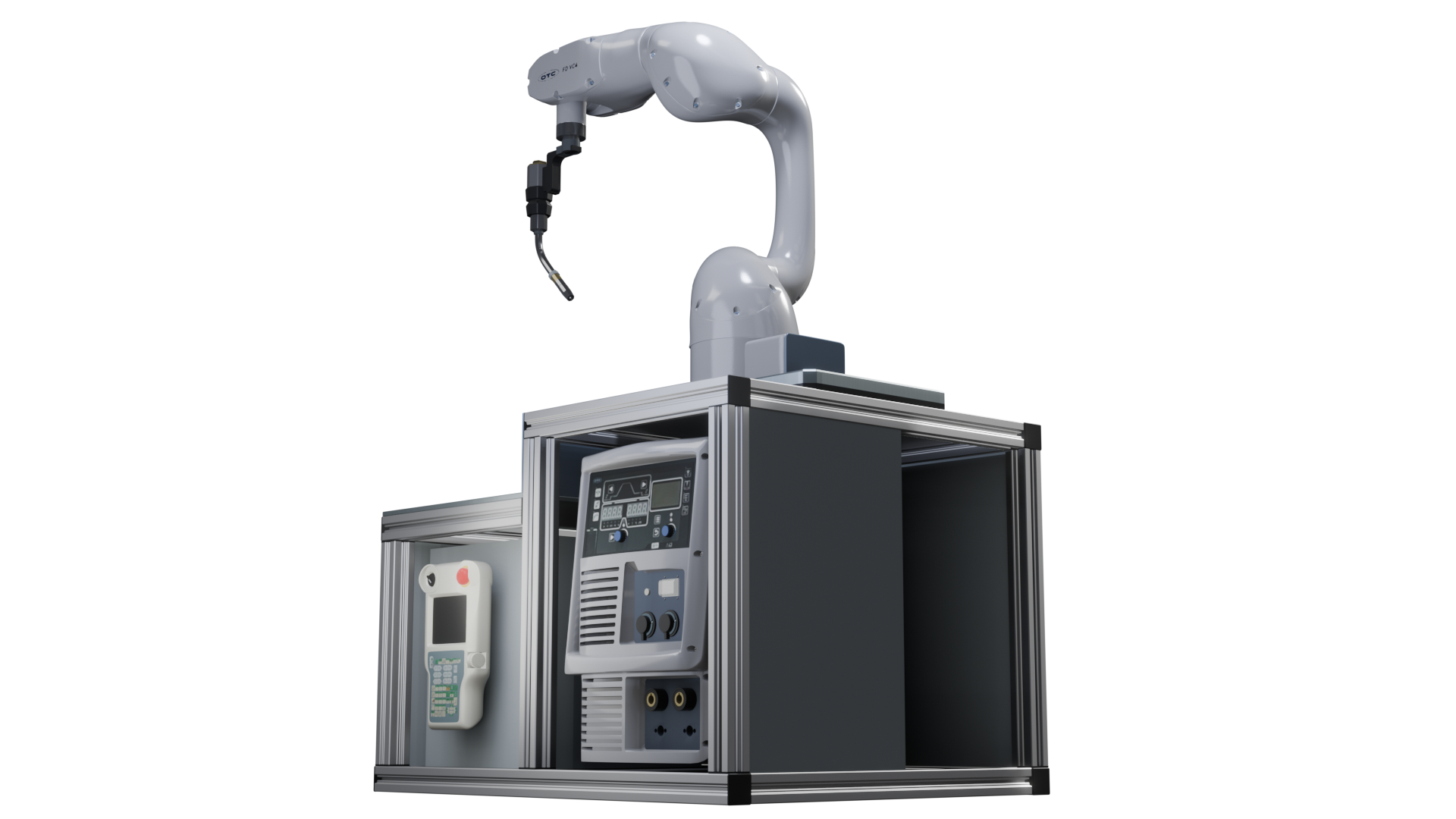

Addressing the automation trend, the FD-VC4/FD-VC4L offers a "Ready-to-Weld" solution that requires no additional equipment from the operator. Its key features include:

  • Spatter-proof design for harsh welding environments.
  • User-friendly programming and intuitive teaching.
  • High-accuracy modified axes specifically engineered for welding.
FD-VC4

Key Features

    1. High Trajectory Accuracy: Optimized for arc welding, delivering precision equivalent to industrial robots.

    2. High-Frequency Resistance: Ideal for environments with high-frequency noise, such as TIG welding.

    3. High Durability & Protection: IP65 rated for dust and water resistance. Designed to withstand heat and spatter without requiring additional covers.

    4. Full Compatibility: Supports the complete OTC portfolio, including SynchroFeed, ServoTorch, and various sensors.

FD-VC4

Design Features

  1. Collaborative Design without corners and edges
    Floating Design without corners and no risk of crushing.
    Minimized risk for injuries due to collision detection.
  2. Lightweight, small-sized, easy to move
    Compared to smallest OTC industrial robot H5 with 58 kg, our cobot has a weight of 37 kg -> 36% weight reduction

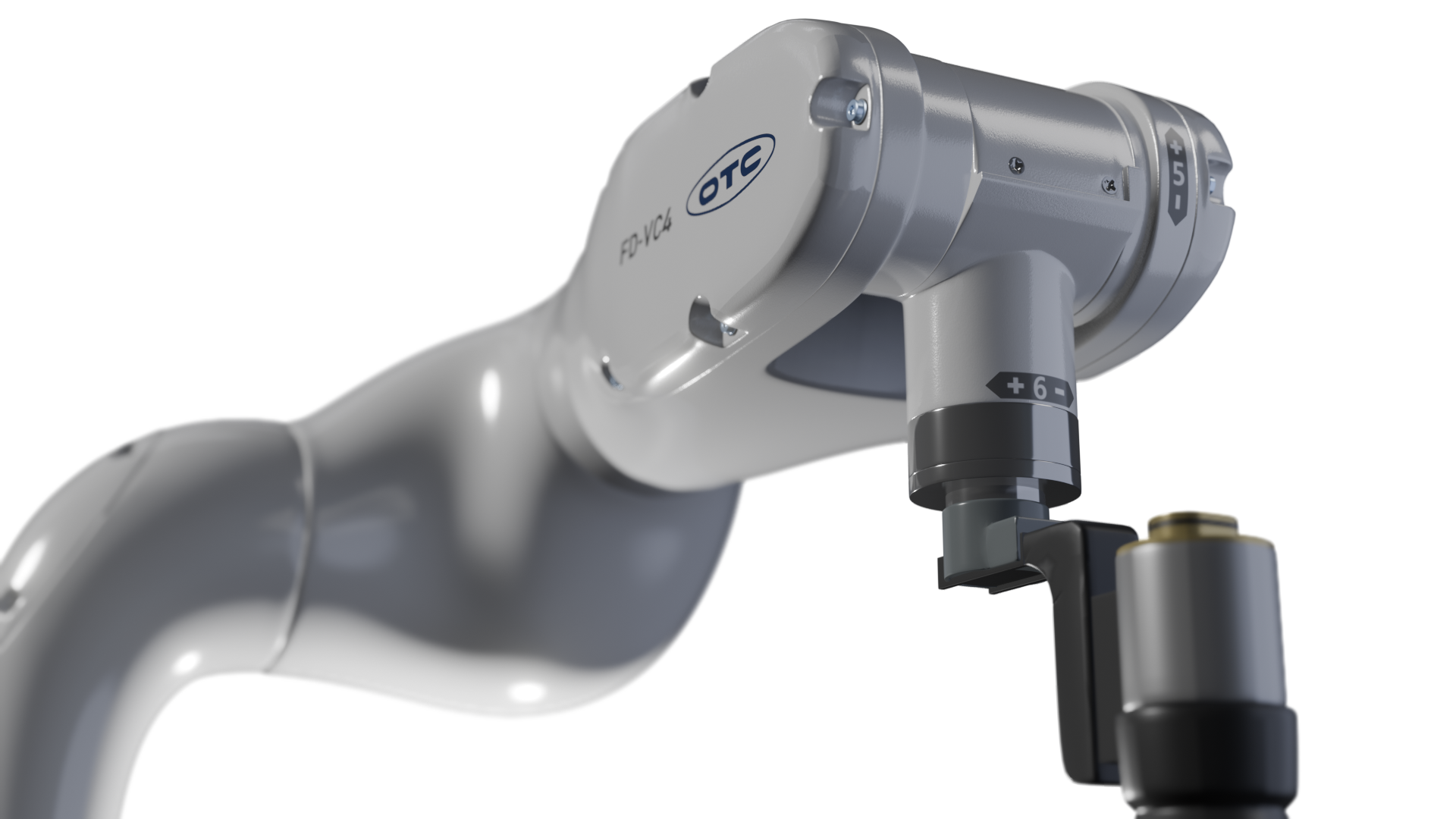

  3. LED status indication
    FD-VC4/FD-VC4L cobot working mode is displayed on the top of the second robot axis.
  4. Complete cobot cabling inside the main unit
    Wiring and air connection are accesible at the 5th axis
FD-VC4

Technical specification

Item
Specifications
Model name NVC4 NVC4L
Structure Vertical articulated type
Number of Axes 6
Wrist payload
4kg
Weight
37kg
47kg

(*) These specifications are subject to change without prior notice.
