Positioner
(Headstock 1PB Series & 2PF Series)

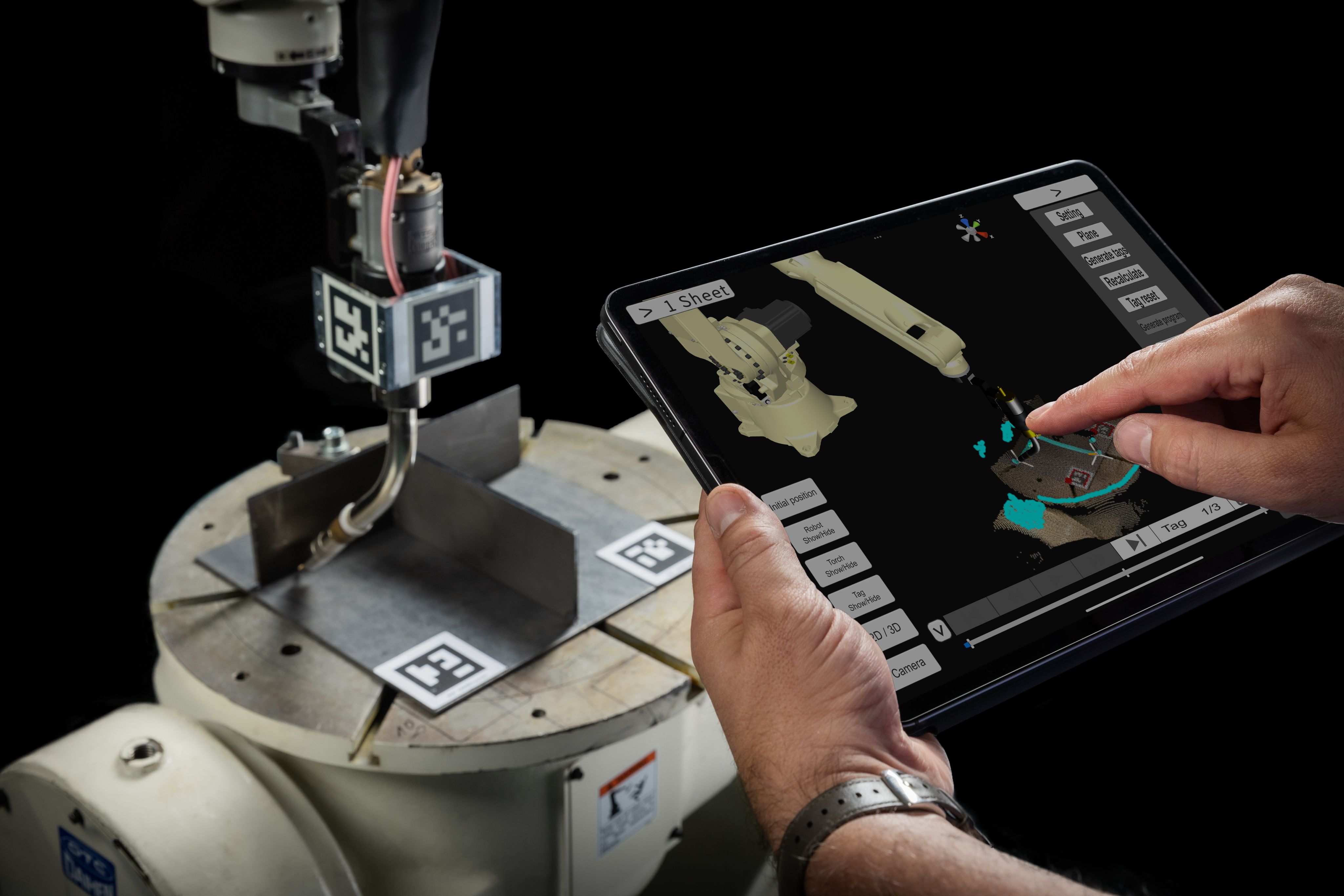

OTC DAIHEN positioners are easy and quick to program because they are connected to our robot controllers. The positioners are designed to grant a maximum usage of the workspace while keeping the optimal machining position for the specific task like arc welding or cutting and other applications.

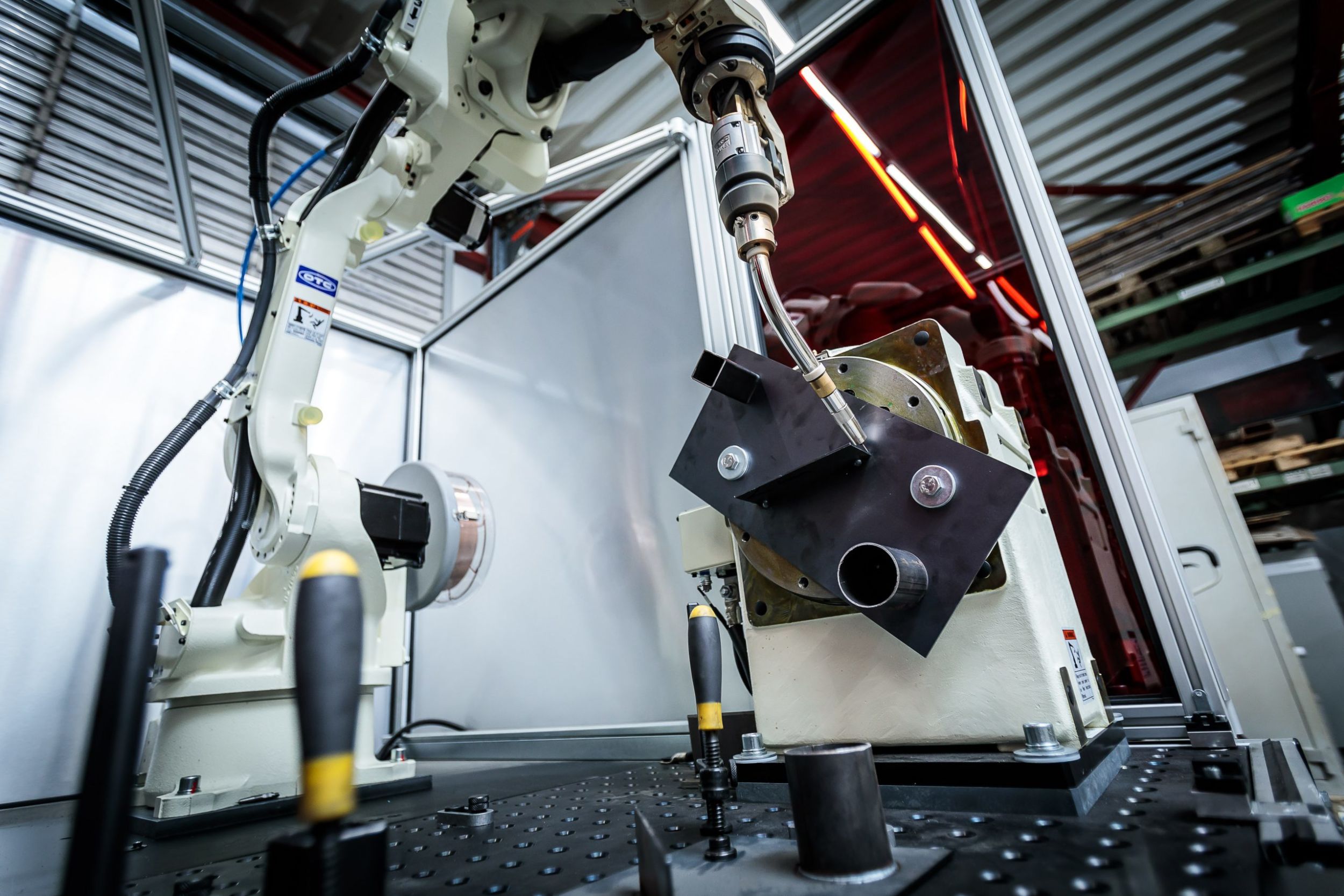

Positioner

Positioner: Peripheral Equipment Jig Positioner

Improved efficiency: Allows faster and more efficient machining or welding of workpieces

Cost savings: Increasing productivity and efficiency in the workplace
Increased precision: Allows precise positioning of the workpiece, essential for accurate machining or welding
Enhanced safety: Improves safety in the workplace by reducing the need for manual handling
Versatility: Highly versatile systems supporting multi-directional movement for diverse workpiece sizes and welding applications.
Positioner

    Headstock 1PB Series

    Can be used to build varied jig systems with a large degree of positioning flexibility.

    A hole through the center of the rotary table, enabling cables and hoses to be routed through easily.

    Positioner

    Technical specification

    Shape A2PB252-J
    		 A2PB502-J
    		 A2PB1002-J
    Max. payload
    250kg
    		 500kg
    		 500kg
    Spin speed max 2.6rad/s(150°/s)
    		 2.1rad/s(120°/s)
    		 1.3rad/s(72°/s)
    Maximum allowable load moment 206N.m
    		 490N.m
    		 1078N.m
    Repeatability ±0.08mm (Position of R250)
    Stop position Arbitrary
    Mass 110kg
    		 170kg
    		 220kg
    Positioner

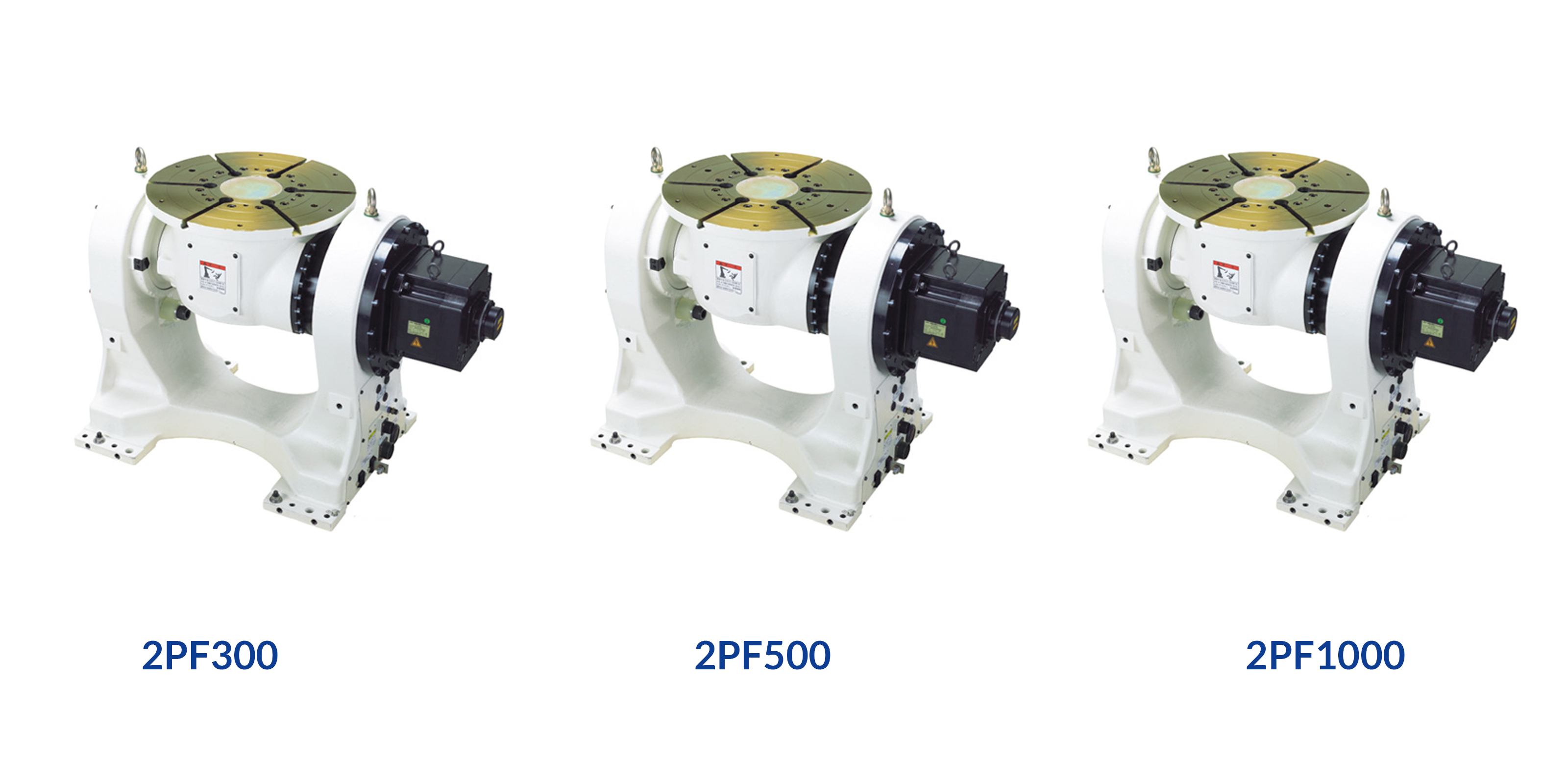

    Headstock 2PF Serie

    Light weight, compact size and small installation space.

    Higher operating speed saves time and is ideal for complex and small weldments.

    Positioner

    Technical specification

    Shape
    A2PF301-JNN
    A2PF501-JNN
    		 A2PF1001-JNN
    Max. payload
    300kg
    		 500kg
    		 500kg
    Spin speed max
    3.1rad/s
    (180°/s)
    2.8rad/s
    (162°/s)
    2.9rad/s (166°/s)
    Max. allowable load moment of table shaft 294N.m 392N.m 882N.m
    Maximum allowable load moment on inclined shaft
    		 882N.m
    		 1347N.m
    		 1347N.m
    Repeatability ±0.08mm (Position of R250)
    Stop position Arbitrary
    Mass
    260kg
    		 260kg
    470kg
