WELBEE M350 / M500 II

High-performance welding, ranging from semi-automatic to fully automated systems, is achieved through optimal and precise waveform control. This is meticulously calibrated to suit specific application requirements, including standard, high-speed, and extension modes.

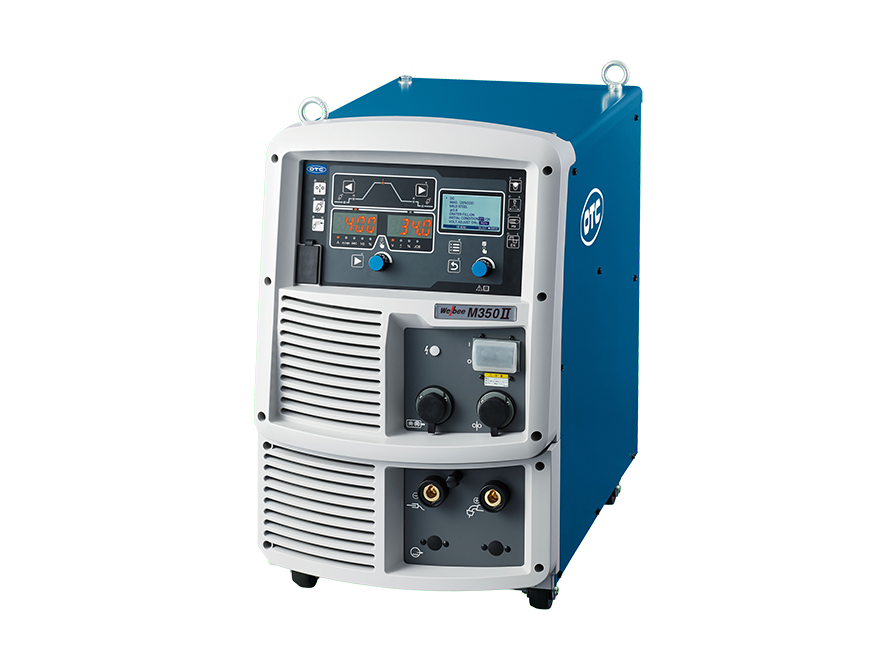

WB M350 II

Characteristic

  • Enhanced Arc Stability: Arc stability has been significantly improved across the entire range, from low to high current levels.

  • Superior Bead Appearance: Minimal voltage fluctuation even during high-speed welding, ensuring a beautiful bead appearance with clean edges.

  • Welbee Side-Flow Structure (M500): Features a high dustproof design and easy maintenance thanks to the innovative side-flow cooling structure.

WELBEE M350

Standard composition

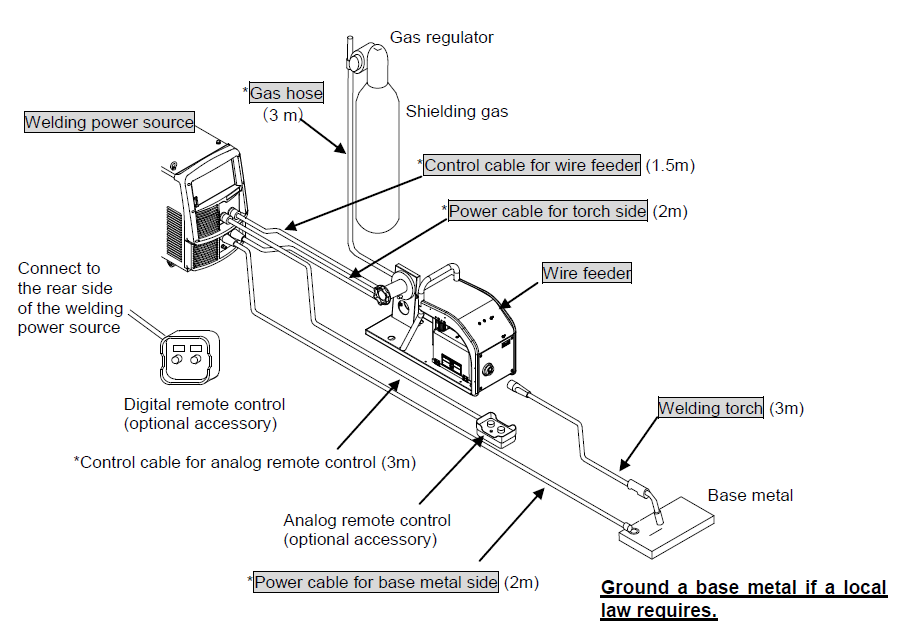

This diagram illustrates the standard composition and connections of the Welbee M350 welding system, featuring the main power source connected to the wire feeder, welding torch, shielding gas system, and base metal ground cable.

WELBEE M350

Technical specification

Welding power supply WB-M350 II WB-M500 II
Rated input 3 Phase /14.7（13.6kW)
 3 Phase / 25.4（23.1kW）
Rated output 350A  500A
Output adjustment range 30-350A / 12-36 30-500A / 15.5-39
Rated usage rate 60% 100%
Mass (dimension) 61 77
Wire feeder CM-7403 CM-7403
Welding Torch BT3500-30 BT5000-30
