CPVE-400  / CPVE-500 Series 2

Elevate your standards with Full Digital IGBT Inverter control, delivering precise arc waveform management, minimal spatter, and specialized stainless steel modes for ultimate productivity.

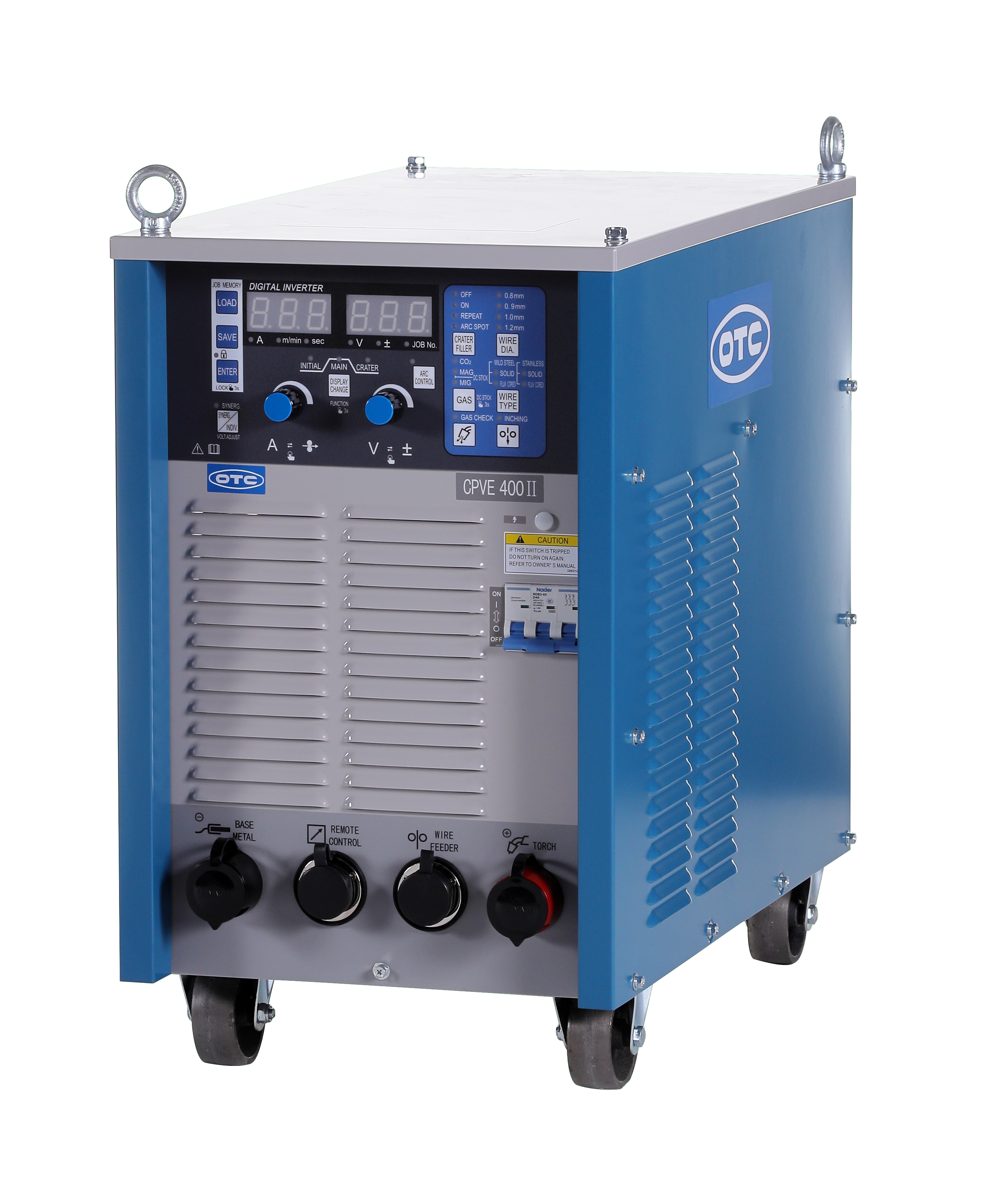

CPVE400
Key Features
  • Full Digital IGBT Inverter Technology: Advanced digital control provides optimal welding current waveform management for CO2/MAG arcs, resulting in minimal spatter and premium weld quality.
  • Stainless Steel (SUS) Welding Mode: An all-new specialized mode expands the scope of applications to include high-quality stainless steel welding.
  • Improved Welding Efficiency: With a 100% duty cycle, the CPVE400 and CPVE500 (S-2) ensure uninterrupted operations and maximized productivity.
CVPE400
  • User-Friendly Digital Interface: The digital input panel, LED display, and indicator lights simplify the process of setting and monitoring welding conditions.
  • Memory Storage Function: Store up to 30 custom welding conditions, with 10 frequently used presets accessible directly from the remote control box.
  • Energy-Saving Function: An automatic cooling fan stop function during welding intervals significantly reduces overall power consumption.
MAG

Technical specification

Welding power supply CPVE400 II CPVE500 II
Rated input 3 Phase 380V 3 Phase 380V
Rated output 400A/34V 500A/39V
Output adjustment range 30～400A/12～38V 30～500A/12～45V
Rated usage rate 60% 100%
Mass (dimension) 54 kg (345x633x580mm) 60 kg (345x633x580mm)
Wire feeder CM-8201 CM-8201
Welding Torch WT3510-SD WT5000-SD
