DM-350

A CO2/MAG welding machine engineered for superior quality and maximum efficiency. It delivers high-quality welding performance even in low current ranges and utilizes a Digital Electronic Reactor to ensure spatter-free operations. The integration of a Penetration Adjustment function maintains consistent welding stability, while its perfect arc starts and standard 4-roll feeder with encoder guarantee precise, reliable performance for every application.



DM-350

CO2/MAG Welding Machine: Pursuing Superior Quality and Efficiency

  • High-Quality Welding: Delivers exceptional welding performance even in low current ranges.
  • Spatter-Free Performance: Features a Digital Electronic Reactor to minimize spatter for cleaner results.
  • Consistent Welding Quality: Equipped with a Penetration Adjustment function to ensure stable and reliable output.
  • Perfect Arc Starts: Guarantees precision and reliability from the very first spark.
  • Standard 4-Roll Feeder with Encoder: Provides precise and smooth wire feeding as a standard feature.

Technical specification

Welding power supply DM-350 (Standard)
Rated Input Voltage (V) 400 +/- 15%
Phase 3 Phase
Range of Output Current 30-350A
Rated Duty Cylce (%) 60
Mass (dimension) 30 kg
(250 x 640 x 370)
DM-350

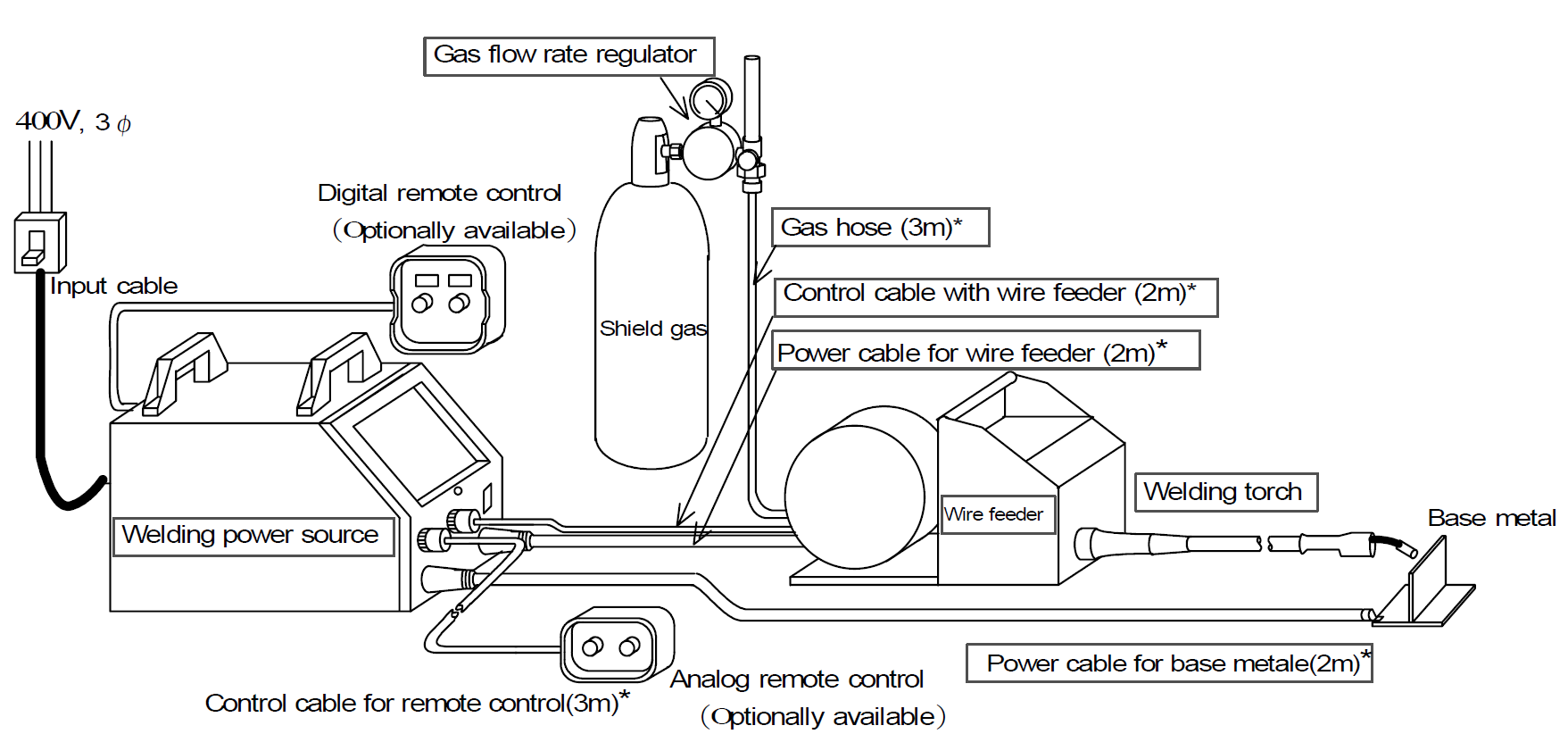

Standard Composition

This welding power source is not included the accessories indicated in the boxes.
Preparation of the Accessories for welding.

(*) Input cable and grounding cable
For a switch box, the 2m input and grounding cables are from the back panel of welding power source.

Input cable 4mm2 with 10mmφ terminal x 3
Grounding cable  4mm2 with 10mmφ terminal x 1
