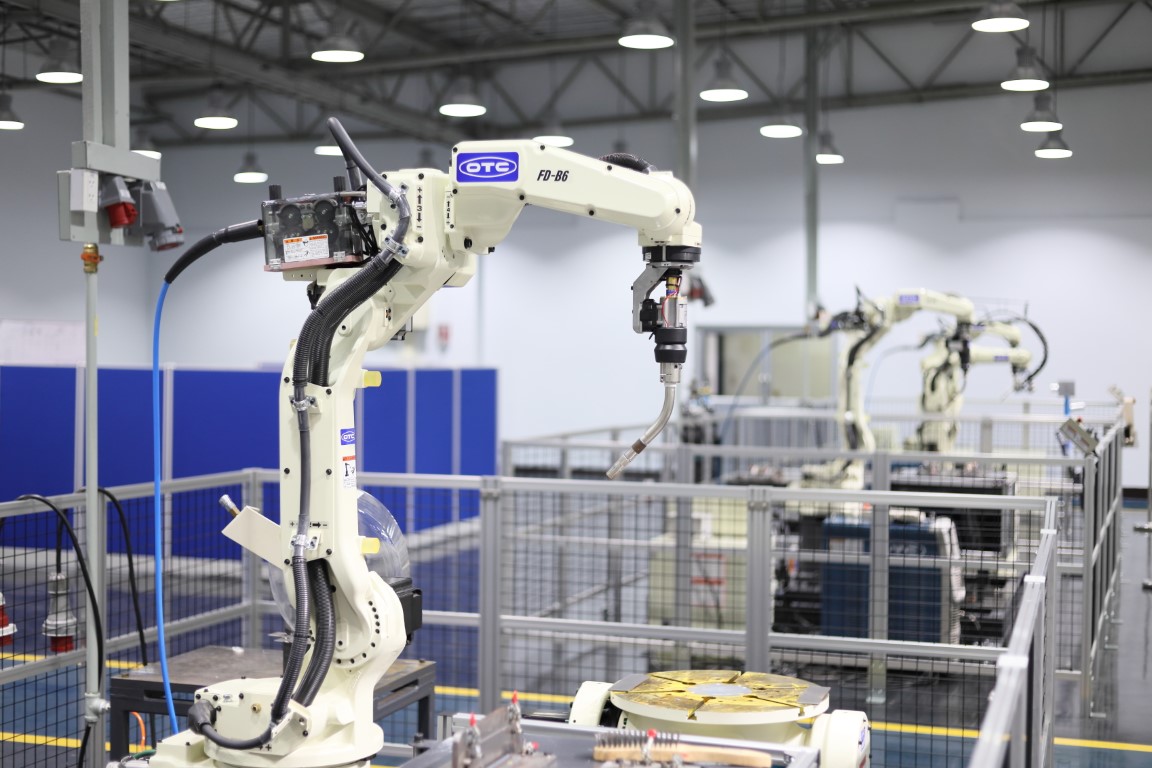

FD-B6

The built-in cable welding robot maximizes maneuverability with high speed and extreme accuracy. Its compact design is specifically engineered for high-performance welding in restricted areas.
FD-B6

Elevate your production line with the FD-B6, a welding robot featuring a slim design and built-in cable system that completely eliminates interference with workpieces and jigs. It delivers the industry's fastest motion speeds to significantly reduce tact time, while its precise and smooth control ensures consistent weld quality even in confined spaces. The FD-B6 is the perfect solution, combining high-speed performance, durability, and simplified maintenance.

Main Features

  • Fast: Achieves the fastest cycle times in the industry, significantly shortening takt time.

  • Slim: The built-in wrist motor eliminates interference with jigs and workpieces, while the slim arm design enables high-density installations.

WELBEE M350L

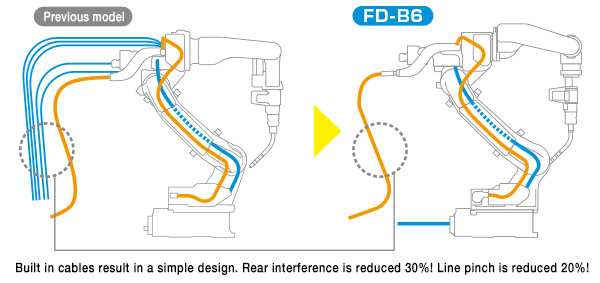

  • Easy to Use: Synchro-feed welding cables are integrated into the arm, eliminating external cable interference. Built-in signal lines and air hoses also support a variety of advanced tools.

  • Powerful: A 6kg payload provides ample capacity for torches and sensors. It fully accommodates advanced welding technologies like Synchro-feed and Cold Tandem.

  • Tough: IP64 environmental rating ensures the robot is dust-proof and splash-proof for demanding conditions.

FD-B6

Technical specification

Type FD-B6
Number of axes 6

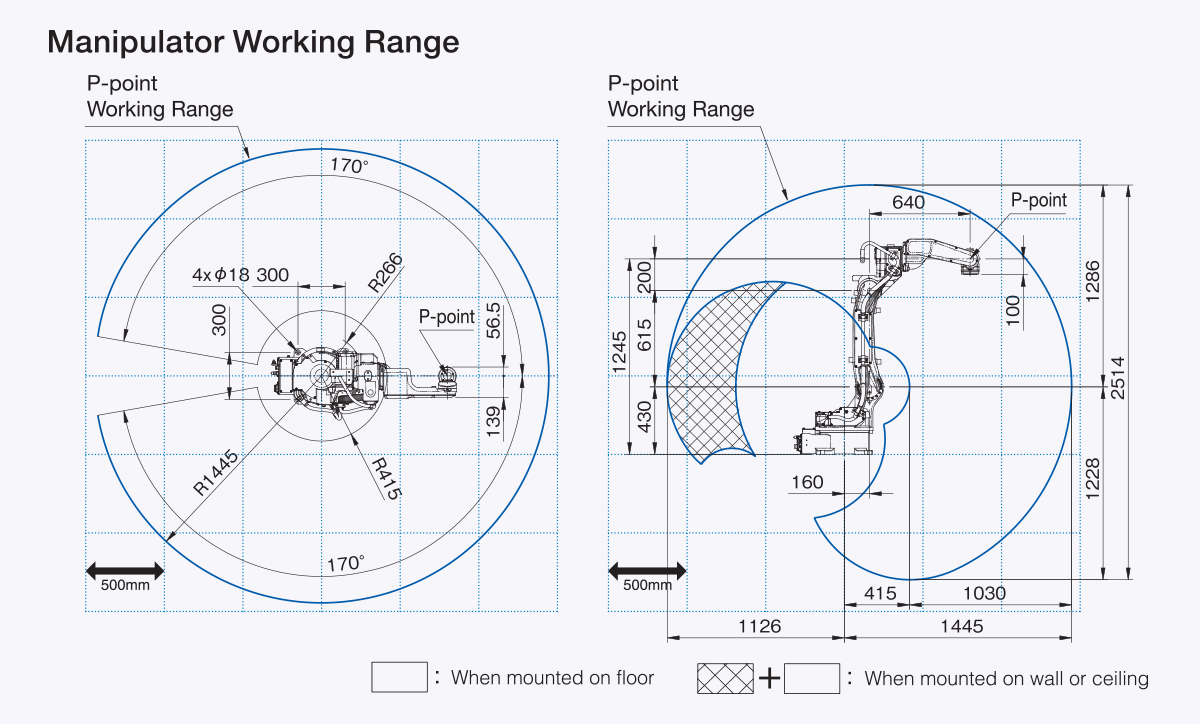

Working range R 1445 mm
Max. payload capacity 6 Kg
Additional payload capacity Axis 3 10 Kg
Protection class upper arm IP 65 (J5, J6)
Installation type Floor, Wall, Ceiling
Weight 145 Kg
Download Banner

Application Scenarios

Synchro-feed III

Synchro-feed III
Arc Welding

Arc Welding
Multi-Purpose

Multi-Purpose

Recommended Robots

Optimize Your Manufacturing Process with Our Top Robot Solutions

At OTC, we offer a range of robotic solutions designed specifically for the automotive industry. Our recommended robots enhance productivity, precision, and efficiency in various manufacturing processes. Explore our top picks below:

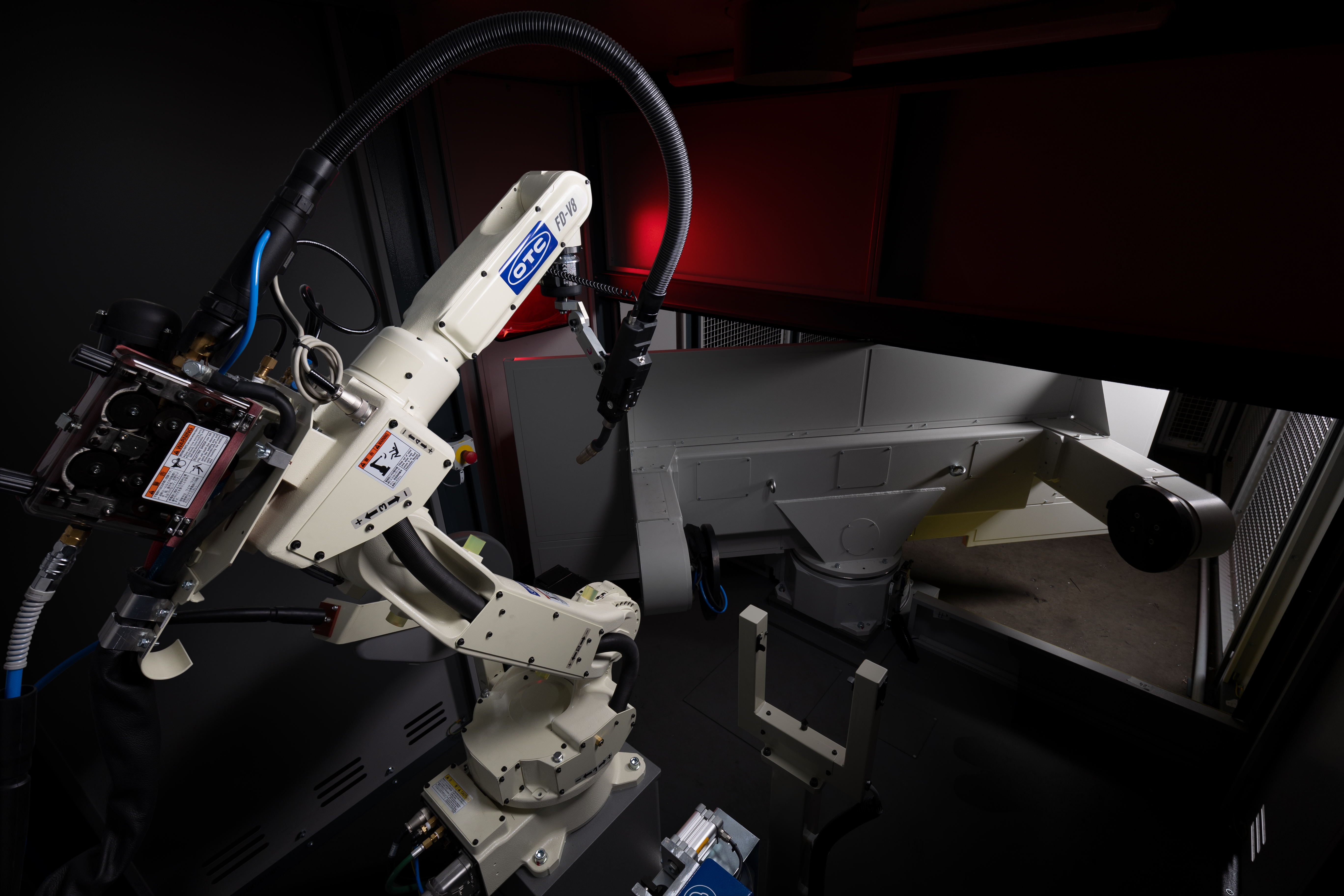

FD-V8

FD-V8

With integrated supply lines, the FD-V8 can weld even more trouble-free and 15% faster than other robots in its class - ideal for maximum productivity.

Robots LOW PAYLOAD ROBOT

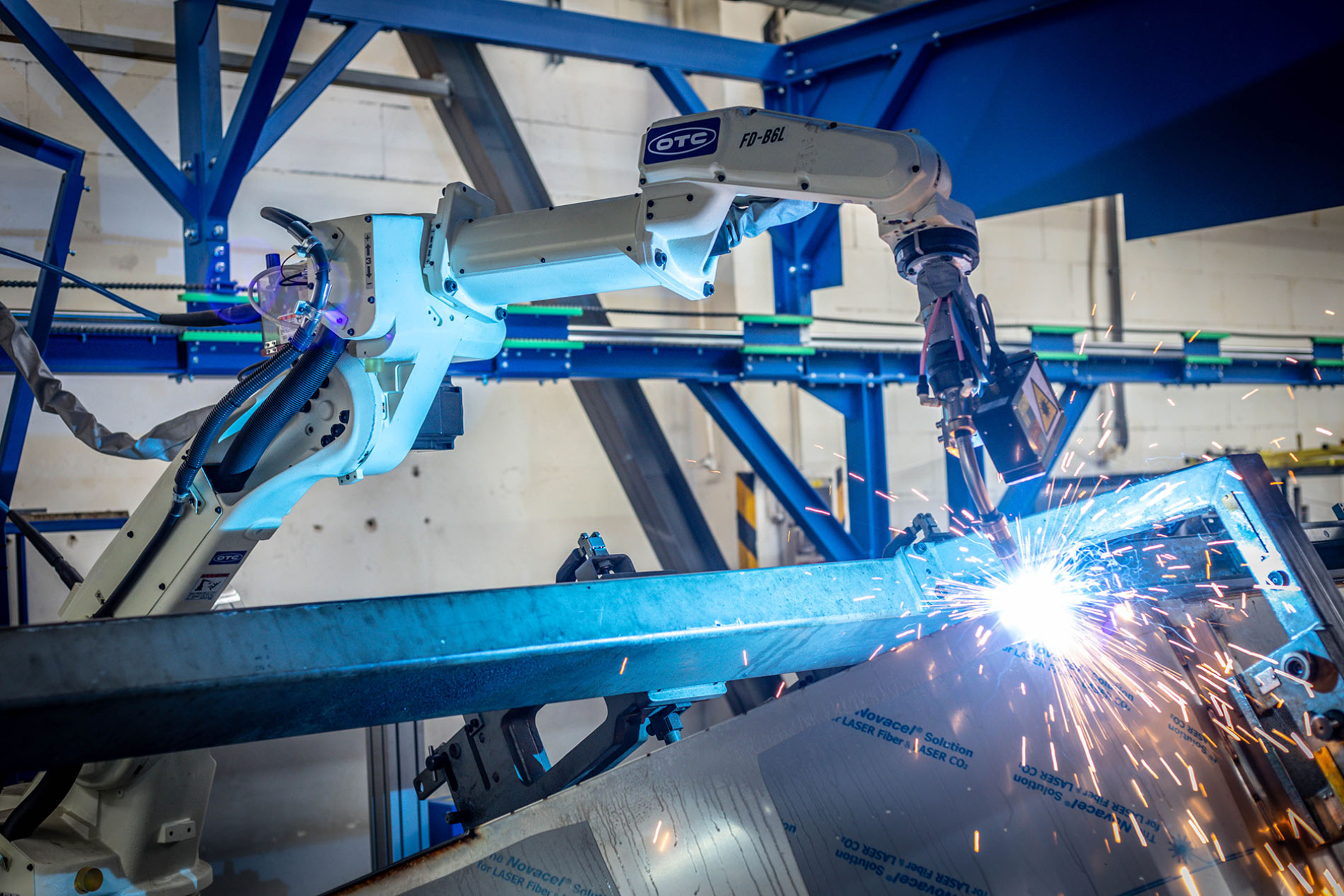

FD-B6L

FD-B6L

The FD-B6 (6kg payload) is a welding and handling robot with integrated cabling. Its high-speed performance and short cycle times are ideal for demanding production tasks.

Robots LOW PAYLOAD ROBOT

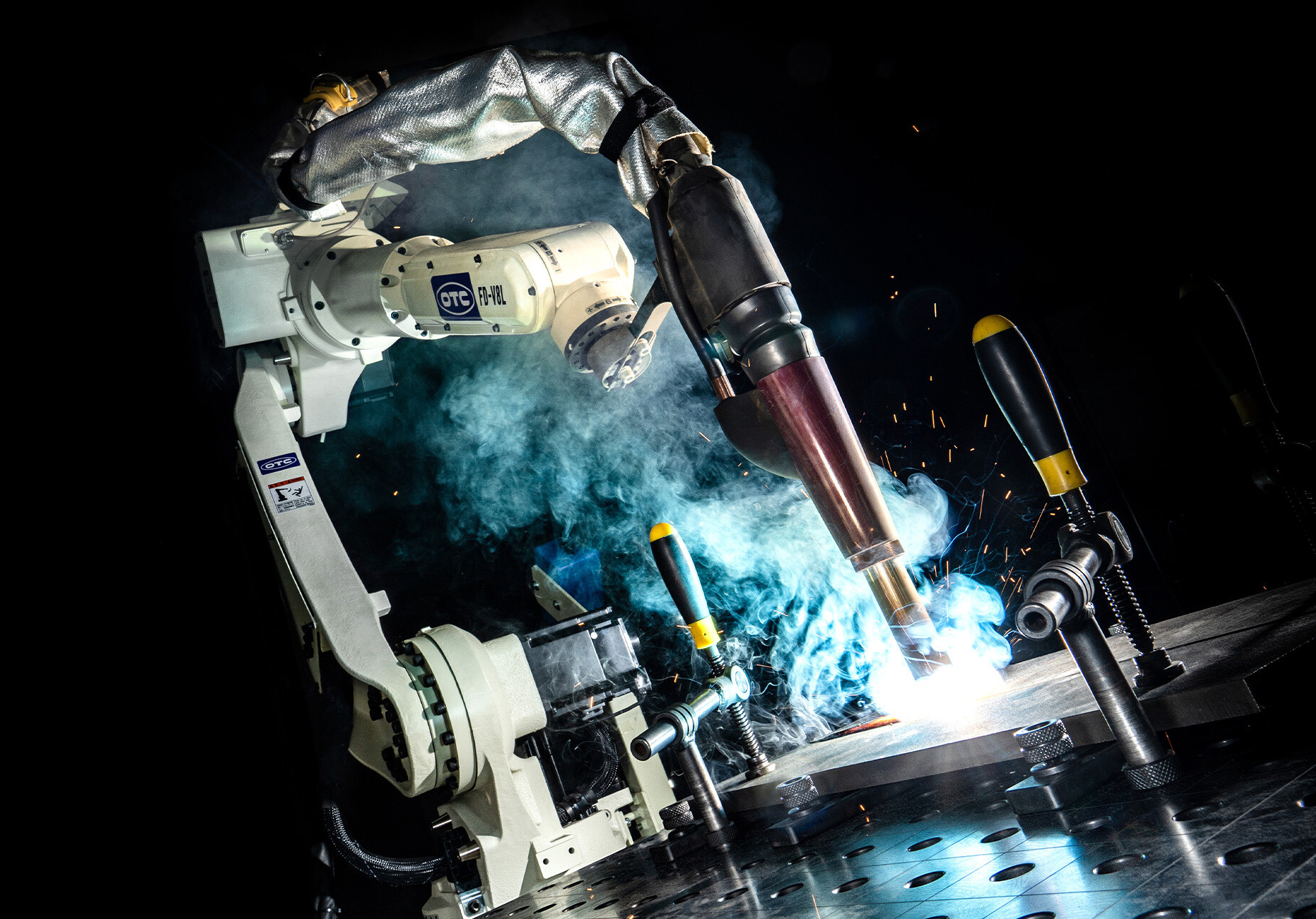

FD-V8L
