FD-B6L

Arc welding and handling robot, featuring an integrated cable routing design, is engineered to handle all welding tasks and payloads up to 6 kg. By delivering higher process speeds and shorter cycle times, the FD-B6 meets the rigorous requirements of even the most demanding handling applications.

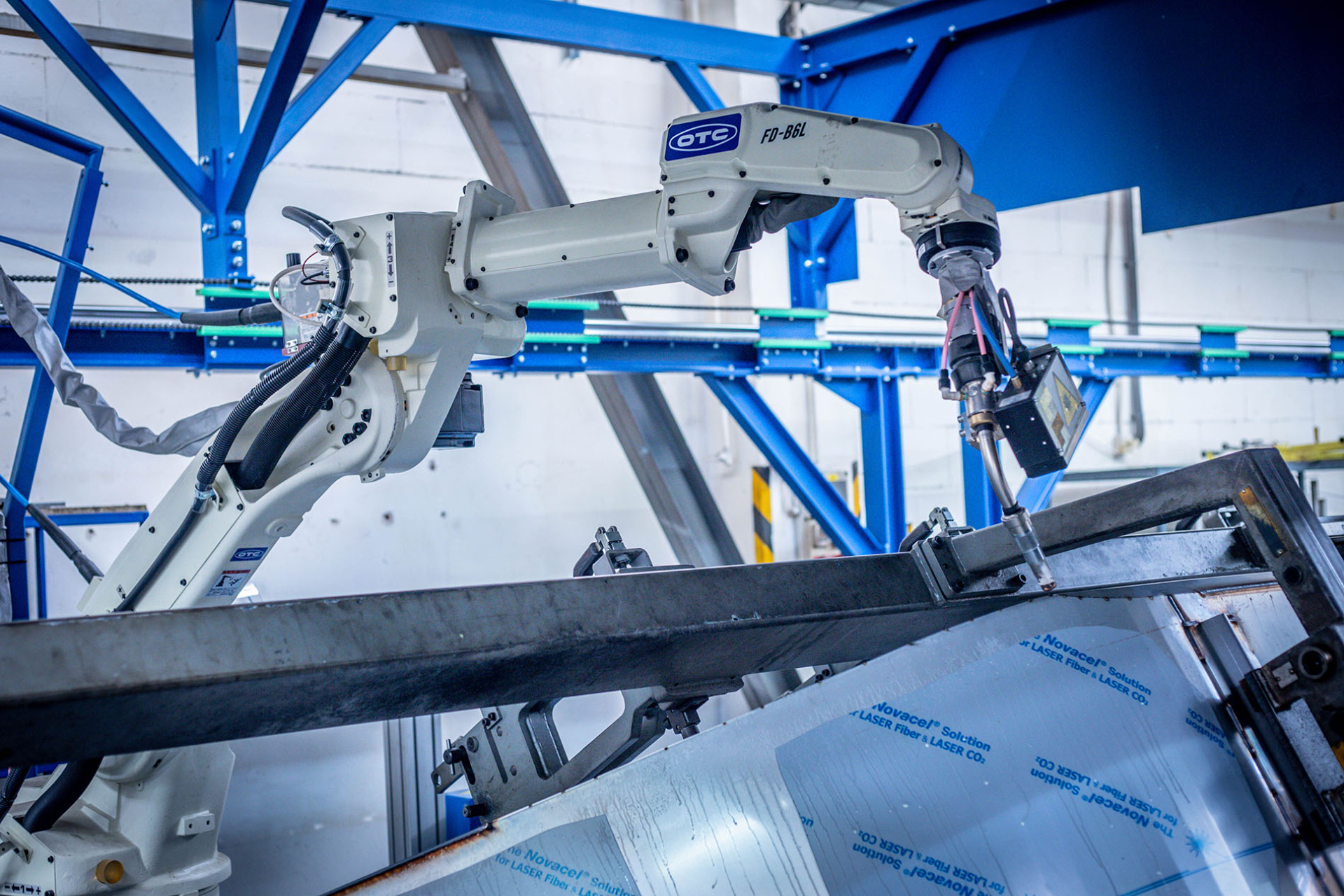

FD-B6

The new FD-B6 (6kg payload) features integrated cabling and pre-installed SynchroFeed connections, delivering high-speed performance and shorter cycle times for demanding welding tasks.

Main Features

Fast: Achieves the fastest cycle times in the industry, significantly shortening takt time.

Slim: The built-in wrist motor eliminates interference with jigs and workpieces, while the slim arm design enables high-density installations.

WELBEE M350L
Easy to Use: Synchro-feed welding cables are integrated into the arm, eliminating external cable interference. Built-in signal lines and air hoses also support a variety of advanced tools.

Powerful: A 6kg payload provides ample capacity for torches and sensors. It fully accommodates advanced welding technologies like Synchro-feed and Cold Tandem.

Tough: IP64 environmental rating ensures the robot is dust-proof and splash-proof for demanding conditions.

FD-B6L

Technical specification

Type FD-B6L
Number of axes 6
Working range R 2008 mm
Max. payload capacity 6 Kg
Additional payload capacity Axis 3 20 Kg
Protection class upper arm IP65 equivalent (J5, J6 Axis)
Installation type Floor, Wall, Ceiling
Weight 278 Kg
