FD-V8

With integrated supply lines, the FD-V8 can weld even more trouble-free and 15% faster than other robots in its class - ideal for maximum productivity.
FD-V8

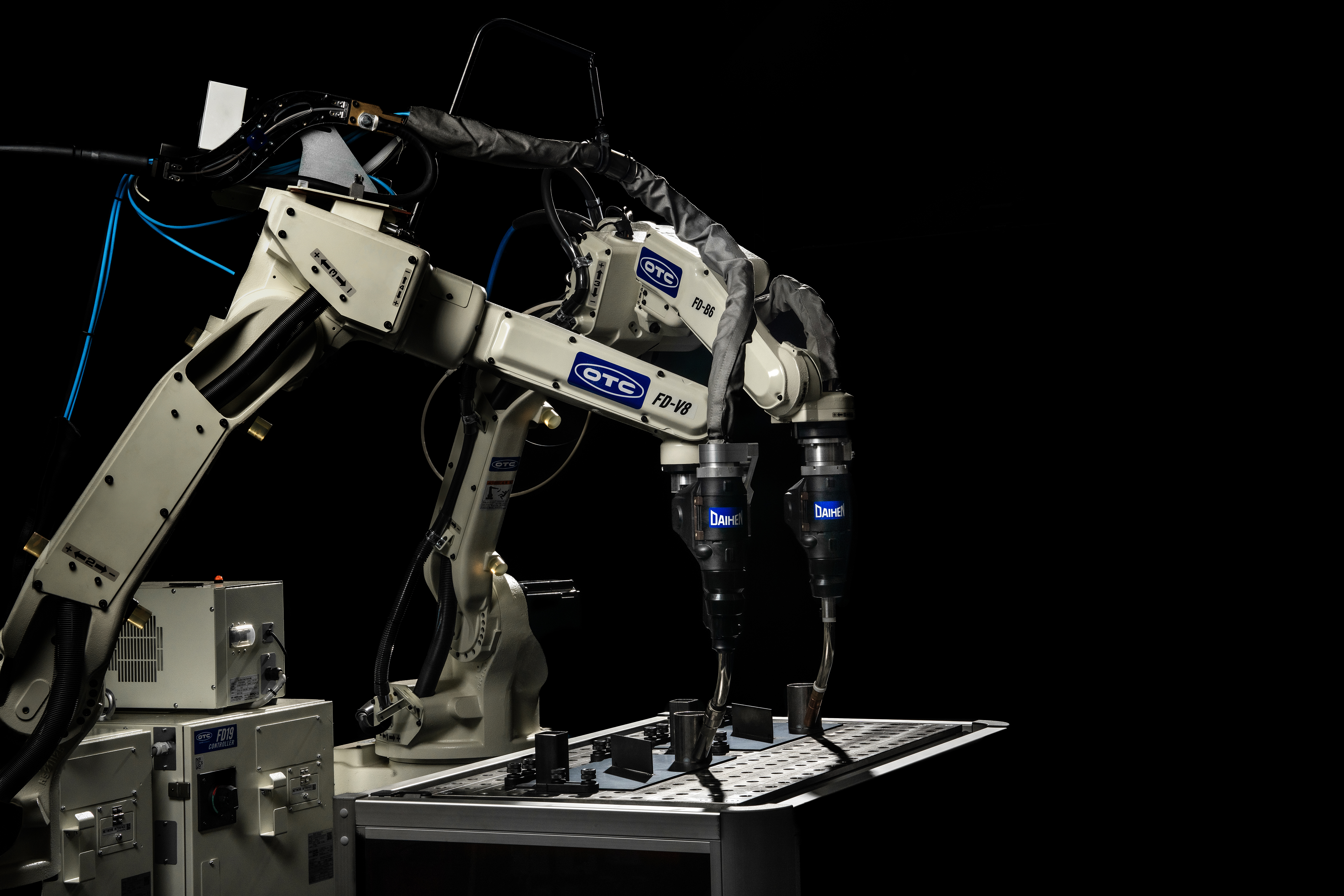

The new arc welding robot, FD-V8, is equipped for all welding tasks and for load capacities of up to 8 kg. Thanks to integrated cable routing, the FD-V8 can still weld much more interference-free than any other robot in its class. It is 15% faster and the cycle times are accordingly shorter - ideal for maximum productivity.

Main Features

  • Faster: Cycle times are reduced due to the industry’s fastest speeds.
  • Slim Design: Featuring a slimmed lower arm and reduced rotating radius to avoid interference with jigs or workpieces.
FD-V8
    • Stronger: The maximum payload has been increased by 30% (up to 8kg), enabling the use of various torches, sensors, and handling applications.
    • User-friendly: All cables required for Synchro-feed welding are built into the lower arm, avoiding interference behind the robot.

    FD-V8

    Technical specification

    Type FD-V8
    Number of axes 6

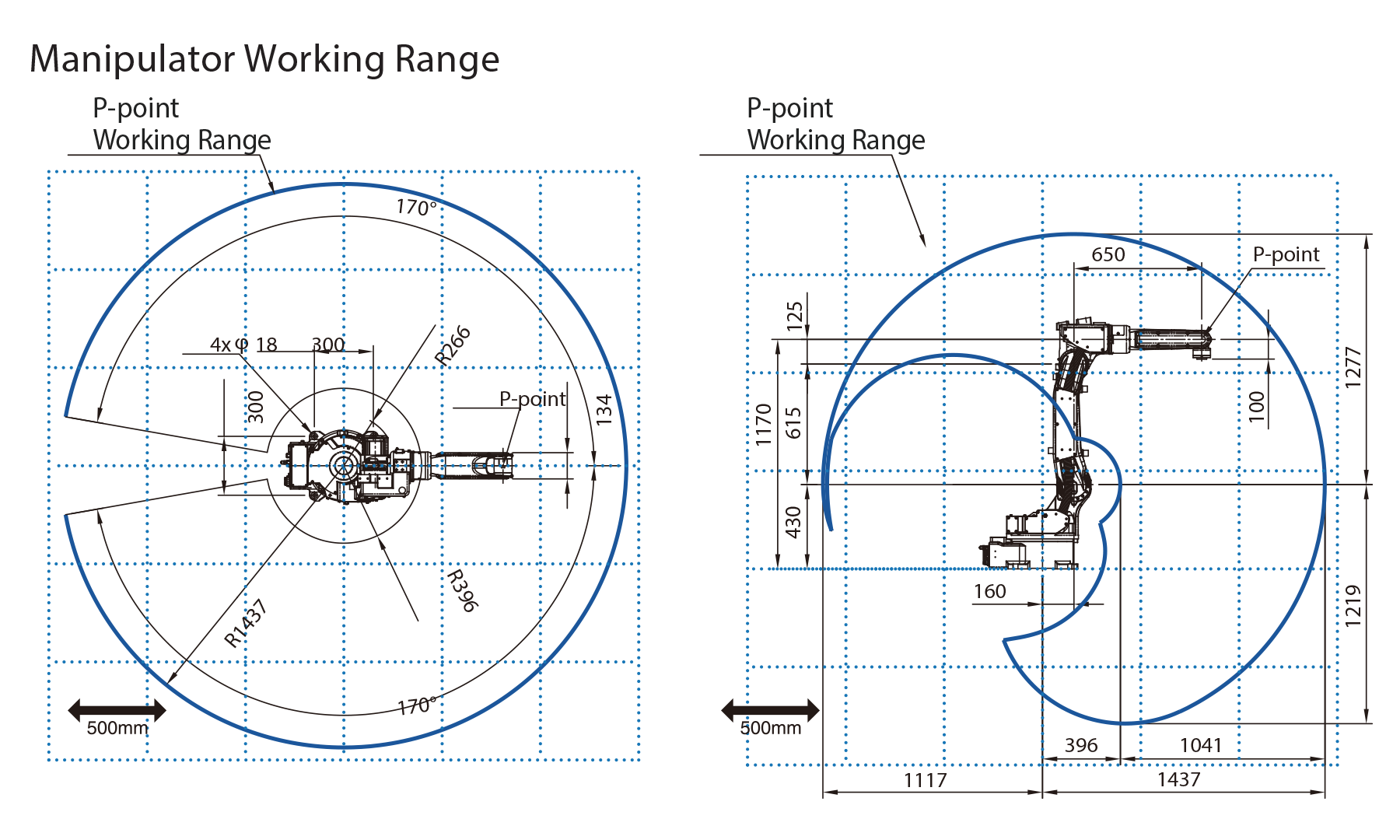

    Working range R 1437 mm
    Max. payload capacity 8 Kg
    Additional payload capacity Axis 3 10 Kg (Note 7)
    Installation type Floor, Wall, Ceiling
    Weight 140 Kg
