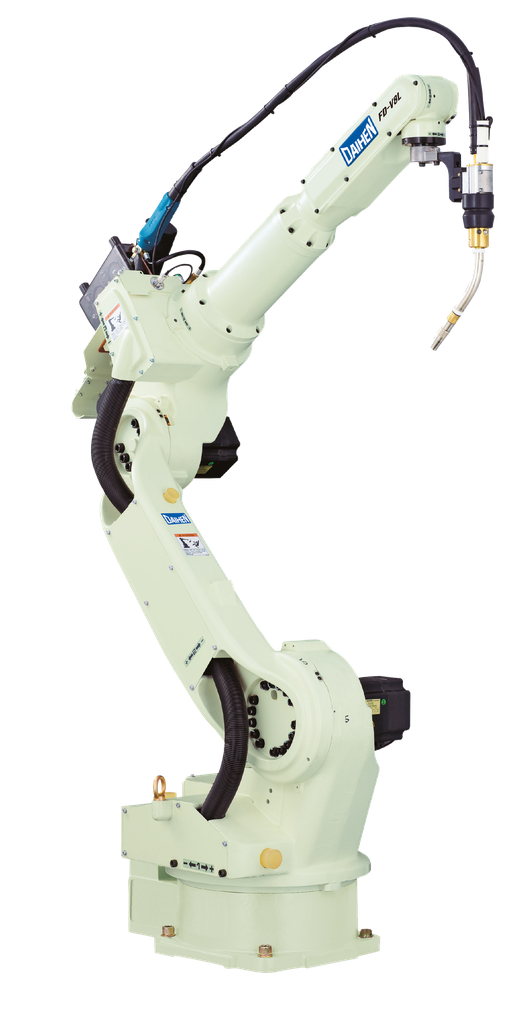

FD-V8L

This arc welding and handling robot, featuring a partially integrated cable routing system and an extended arm, is perfectly designed to excel in all welding and handling applications.
FD-V8L

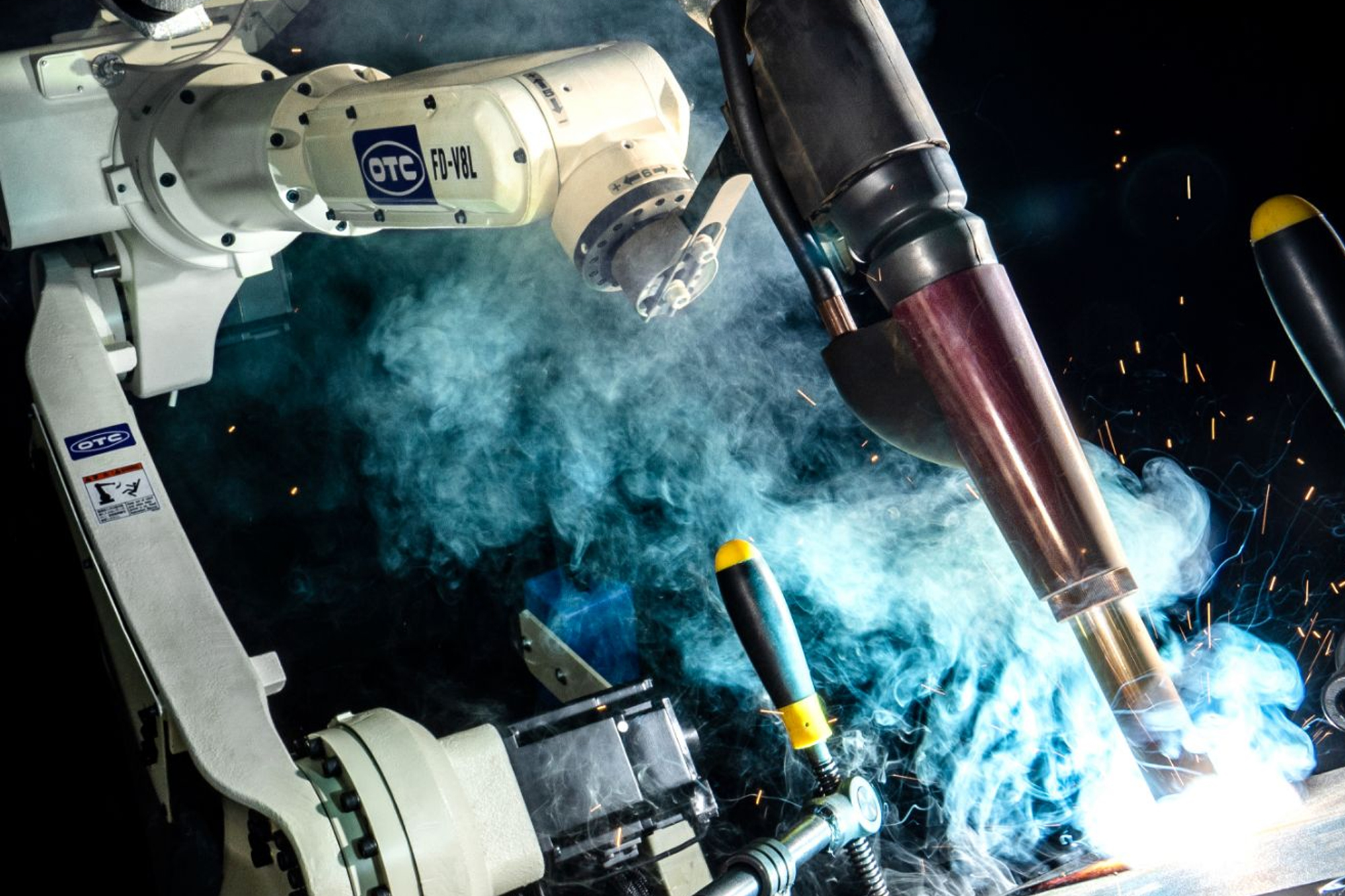

The new FD-V8L arc welding robot features a refined design with partly integrated cable routing, capable of handling all welding tasks and payloads up to 8 kg. It comes pre-installed with all necessary connections and cables for the SynchroFeed process. Thanks to its impressive arm length, it is specifically ideal for large-scale workpieces and extensive working areas.

Main Features

  • Faster Cycle Time: Engineered for industry-leading speeds to maximize production efficiency.
  • Slim Design: The streamlined lower arm design minimizes unnecessary rotary motion to reach work positions, effectively preventing collisions with jigs and workpieces.

  • User-friendly Operation: Cables for SynchroFeed are integrated within the lower arm to eliminate cable interference behind the robot.

  • Stronger Structure: Enhanced maximum payload of up to 8 kg, allowing for the versatile use of various welding torches and sensors.

FD-V8L

Technical specification

Type FD-V8L
Number of axes 6
Working range R 2006 mm
Max. payload capacity 8 Kg
Additional payload capacity Axis 3 20 Kg (Note 7)
Protection class lowwer arm IP54 equivalent (J1 -4 Axis)
Installation type Floor, Wall, Ceiling
Weight 237 Kg
